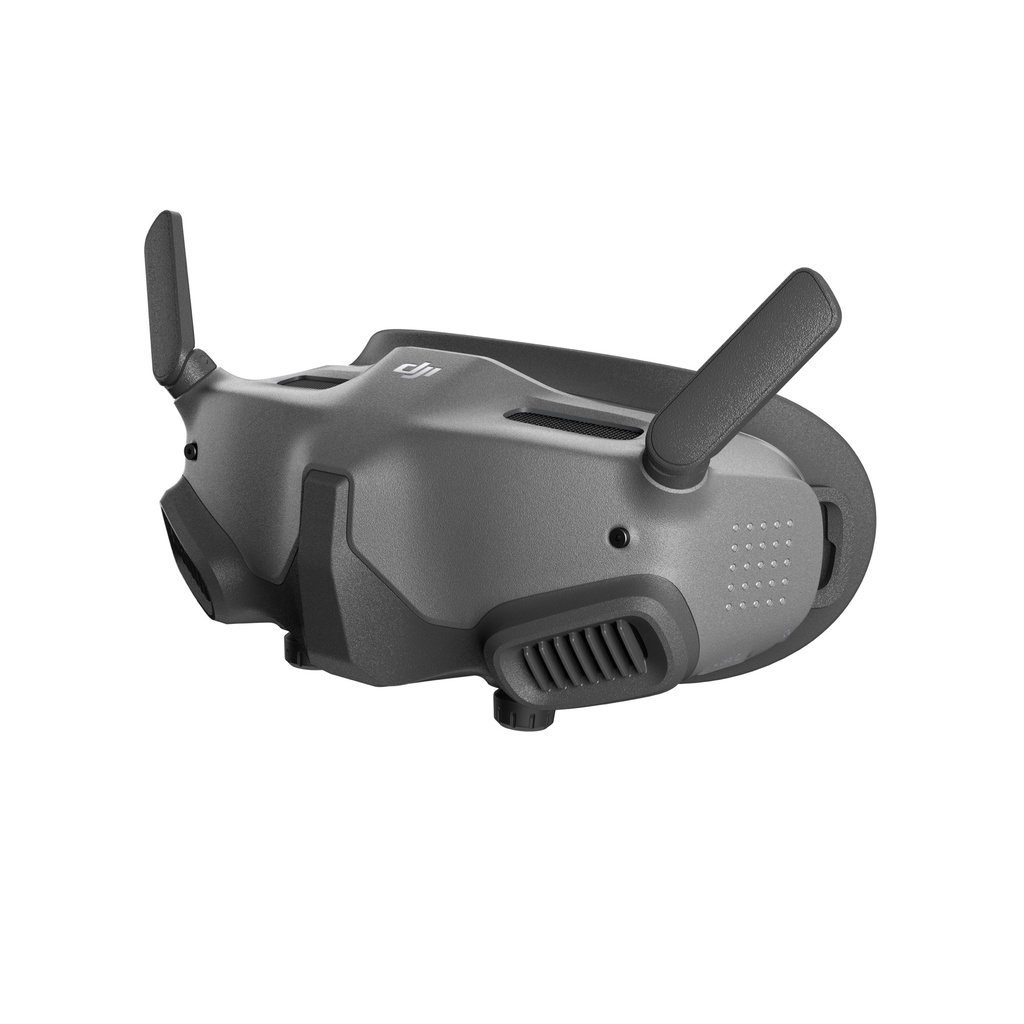

DJI Goggles 2

• Model

• RCDS18

• Weight

• Approx. 290 g (headband included)

• Dimensions (L×W×H)

• With antennas folded: 167.40×103.90×81.31 mm
  With antennas unfolded: 196.69×103.90×104.61 mm

• Screen Size (single screen)

• 0.49-inch

• Resolution (single screen)

• 1920×1080

• Refresh Rate

• Up to 100 Hz

• Interpupillary Distance Range

• 56-72 mm

• Diopter Adjustment Range

• -8.0 D to +2.0 D

• FOV (single screen)

• 51°

• Communication Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz [1]

• Transmission Power (EIRP)

• 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC)
  5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

• Video Recording Format

• MOV

• Supported Video and Audio Playback Formats

• MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)

• Wi-Fi Wireless Streaming

• Supports DLNA protocol

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Power Input

• DJI Goggles 2 Battery

• Supported SD Cards

• microSD (up to 256 GB)

Wi-Fi

• Protocol

• Wi-Fi 802.11b/a/g/n/ac

• Communication Frequency

• 2.400-2.4835 GHz
  5.150-5.250 GHz (indoor use only) [2]
  5.725-5.850 GHz

• Transmission Power (EIRP)

• 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC/KC)
  5.1 GHz: < 20 dBm (FCC/CE/MIC/KC)
  5.8 GHz: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Bluetooth

• Protocol

• Bluetooth 5.2

• Communication Frequency

• 2.400-2.4835 GHz

• Transmission Power (EIRP)

• < 8 dBm

Video Transmission

• Video Transmission Latency [3]

• 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
  1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

• Max Video Transmission Bitrate [3]

• 50 Mbps

• Video Transmission Range [3]

• When used with DJI Avata or DJI O3 Air Unit, DJI Goggles 2 can achieve the following max video transmission range:
  10 km (FCC), 2 km (CE), 6 km (SRRC)

DJI Goggles 2 Battery

• Capacity

• 1800 mAh

• Voltage

• 7-9 V (1.5 A)

• Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 18 Wh

• Charging Temperature

• 0° to 45° C (32° to 113° F)

• Max Charging Power

• 12.6 W (5 V/2 A, 9 V/1.4 A)

• Operating Time

• Approx. 2 hours [4]

• Weight

• Approx. 122 g

• Dimensions (L×W×H)

• 73.04×40.96×26 mm
