141.5 × 141.5 × 169 mm （Without the Quick Release Anti-Vibration Board）

90 × 102.5 × 128 mm （With the Quick Release Anti-Vibration Board）

533.5 g ± 5 g （With the Quick Release Anti-Vibration Board and Interface Docking Station）

405 g ± 5 g （Without the Quick Release Anti-Vibration Board）

Avg. 11.4 W (Static)

IP54 Under controlled laboratory conditions, the product meets the IP54 protection rating as defined by IEC 60529.

Note: This rating is not permanent, and protection performance may degrade over time due to product wear and usage.

-20 ℃ to 50 ℃

-20 ℃ to 60 ℃

140 km/h (Lab Data)

120 km/h (Lab Data)

S.Bus, UART, Ethernet (TCP/UDP)

Ethernet Port

10–26 V (3–6S)

*Requires independent power supply

Brightness: 0–100;

Saturation: 0–100;

Contrast: 0–100;

Exposure Compensation (EV): ±10;

Shutter Speed (SS);

White Balance (WB);

11 x

165 x

10 T

Yaw, Pitch, Roll

0.01°

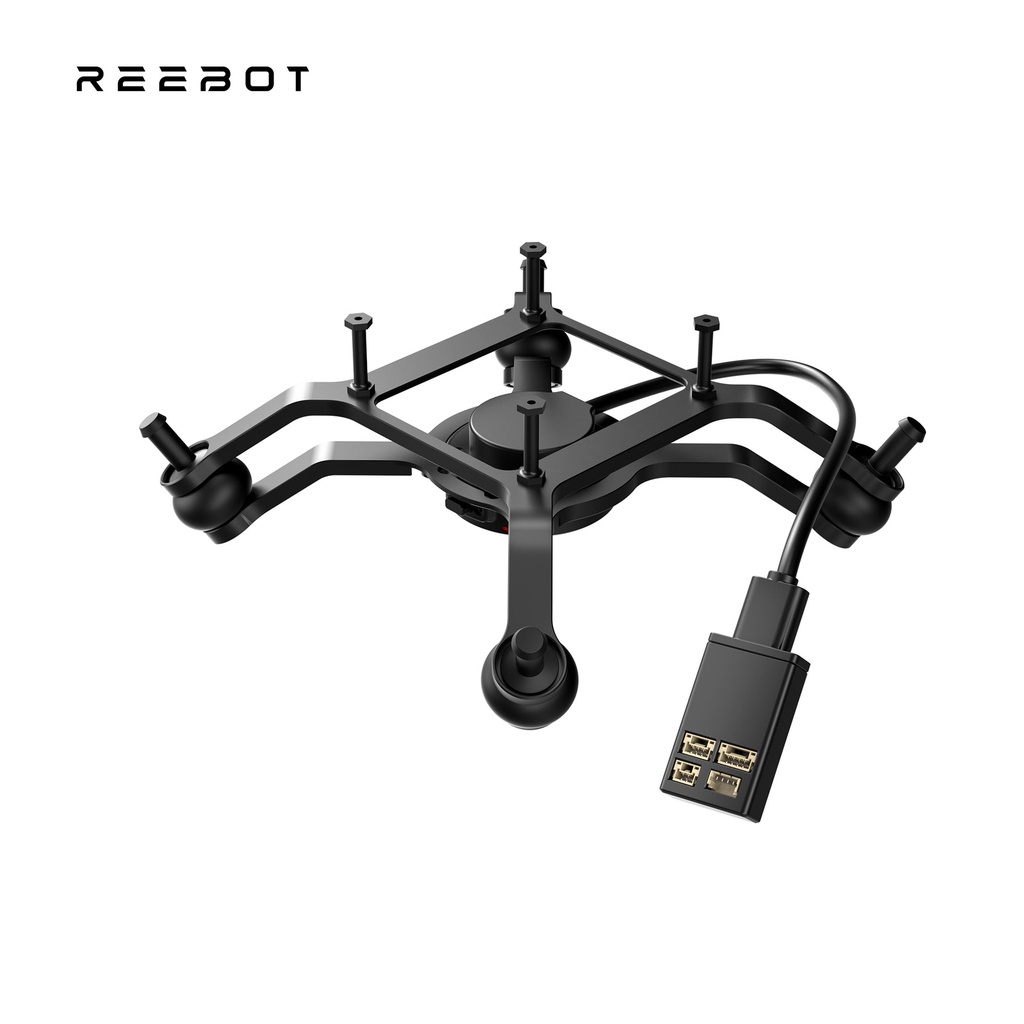

Quick-Release Anti-Vibration Board

Pitch: –90° to +20°

Yaw: 360° × N (Unlimited)

Roll: –60° to +60°

Pitch: –120° to +60°

Follow Mode, FPV Mode, Lock Mode

1/2" CMOS;

Effective Resolution: 48 MP

Focal Length: 4.5 mm （Effective focal distance: 24 mm）

Aperture: f/2.8

DFOV：84°

3840×2160 @ 30 fps

2560×1440 @ 30 fps

1920×1080 @ 30 fps

1280×720 @ 30 fps

MP4

H.265

3840×2160

8000×6000

JPG

Avg/CW/Spot

Pedestrian: 2806 m

Vehicle: 8606 m

Vessel: 26192 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

Pedestrian: 702 m

Vehicle: 2151 m

Vessel: 6548 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

Pedestrian: 351 m

Vehicle: 1076 m

Vessel: 3274 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

1/2" CMOS; Effective Resolution: 48 MP

Focal distance：15-50 mm（Effective focal distance：81-270 mm） ±5%

Aperture: f/3.8-f/4.4

W: 28.98(D) 23.48(H) 17.81(V)

T: 9.06（D） 7.29(H) 5.49(V)

MF, AFS

3840×2160 @ 30fps

2560×1440 @ 30fps

1920×1080 @ 30fps

1280×720 @ 30fps

MP4

H.265

3840×2160

8000×6000

JPG

Avg/CW/Spot

W:

Pedestrian: 9375 m

Vehicle: 28750 m

Vessel: 87500 m

T:

Pedestrian: 31250 m

Vehicle: 95833 m

Vessel: 291667 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

W:

Pedestrian: 2344 m

Vehicle: 7188 m

Vessel: 21875 m

T:

Pedestrian: 7813 m

Vehicle: 23958 m

Vessel: 72917 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

W:

Pedestrian: 1172 m

Vehicle: 3594 m

Vessel: 10938 m

T:

Pedestrian: 3906 m

Vehicle: 11979 m

Vessel: 36458 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

905 nm

5–1200 m

± 1 m

3 Hz (5–45 m)

0.75–3 Hz (45–1200 m)

Class 3R

VOx Uncooled

Pixel Pitch: 12 um

Focal Length: 18 mm Aperture: f/1.1

DFOV：31°

8 ×

640 × 512，1280 × 1024 @ AI

MP4

H.265

640 × 512

1280 × 1024 @ AI

2560 × 2048 @ AI

JPG

8 - 14 μm

High gain：-20 ℃ to +150 ℃ （±2℃ or ± 2%，Take max value）

Low gain：0 ℃ to +550 ℃ （± 3 ℃ or ± 3 %，Take max value）

Supported

Full-Image / point / box thermometric

White Hot, Lava, Iron Red, Low Light, Aurora, Red Hot, Medical, Black Hot, Golden Red (9 modes total)

Pedestrian: 750 m

Vehicle: 2300 m

Vessel: 7000 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

Pedestrian: 188 m

Vehicle: 575 m

Vessel: 1750 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

Pedestrian: 94 m

Vehicle: 288 m

Vessel: 875 m

*According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively.

RTSP (Dual Stream Supported)

H.265

Supports Frame Stitching & View Selection

FAT32/exFAT

*Please use U3/Class 10/V30 or higher-grade memory card.

4K: 40Mbps

2K: 20Mbps

1080P: 10Mbps

720P: 5Mbps

(H.265)

141.5 × 41.5 × 63 mm

123g ±5g（Without expansion dock）
