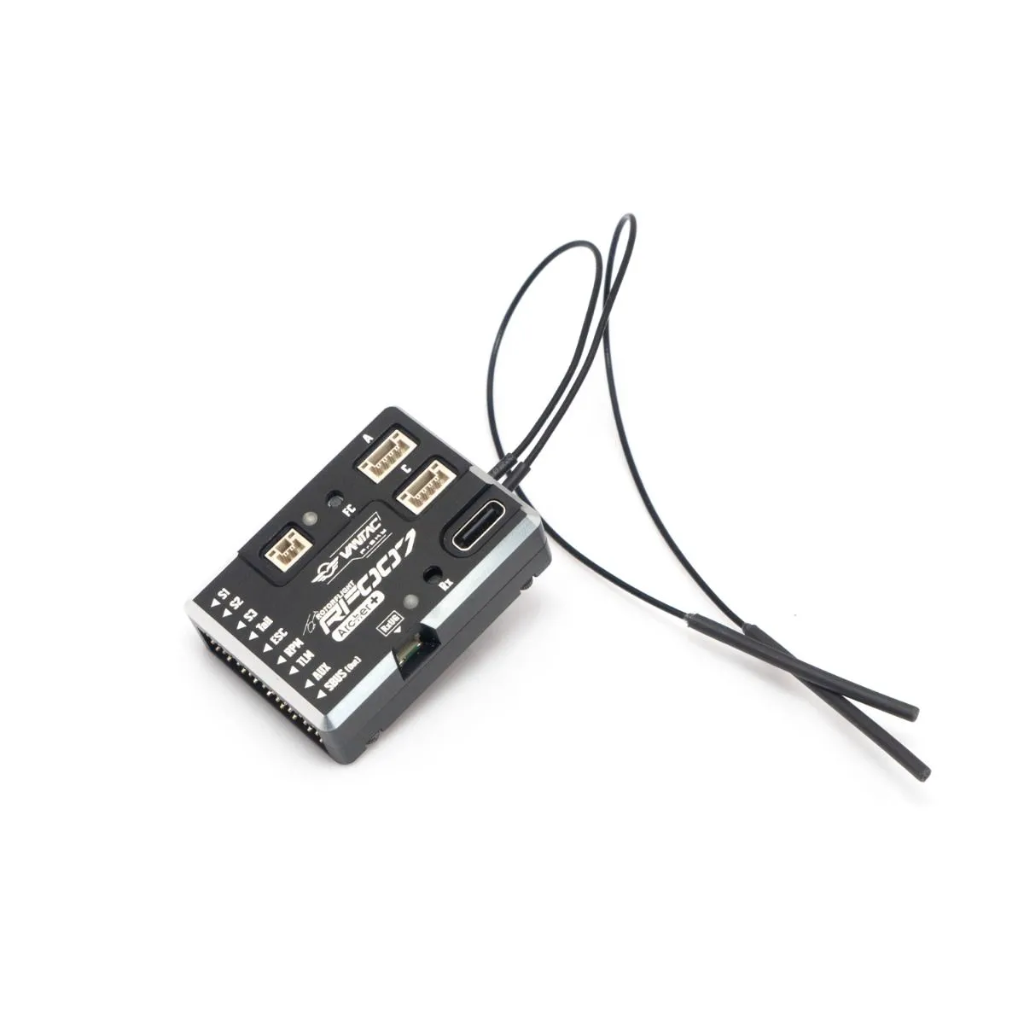

1x ROTORFLIGHT VANTAC RF007 Twin

Manual

● Flight Controller Firmware: Rotorflight 2.x

● Dimension: 43.5×31.2×13.7mm

● Weight: 25.2g

● Receiver Options:

- RF007 ARCHER+: Built-In 2.4G Archer Plus RS Receiver

- RF007 TWIN: Built-In Dual 2.4G TW R6 Receiver

● Operating Voltage Range: 5-16V

● Operating Current (FC Only): 125mA@5V

● Voltage Measurement Range via AIN (External device): 0-80V

● RxUG Port: For Upgrading Internal RX Firmware (In case of OTA upgrade failure)

- Note: When powering this RxUG port, do not introduce additional power input from other ports to ensure the safe operation of the connected devices.

=====================================================================================

● MCU: STM32F722RET6

● Gyroscope (IMU): ICM-42688P

● Barometer: SPL06-001

● Blackbox Flash: 128MB

● Servo Ports: Servo 1, Servo 2, Servo 3, Tail

● ESC Ports: ESC (Throttle), RPM (Sensor), TLM (ESC Telemetry or other functions)

● Other Ports: AUX and SBUS Out/In

● Expansion Ports: Port A, C, and RxUG
