Overall

Model: ZR10

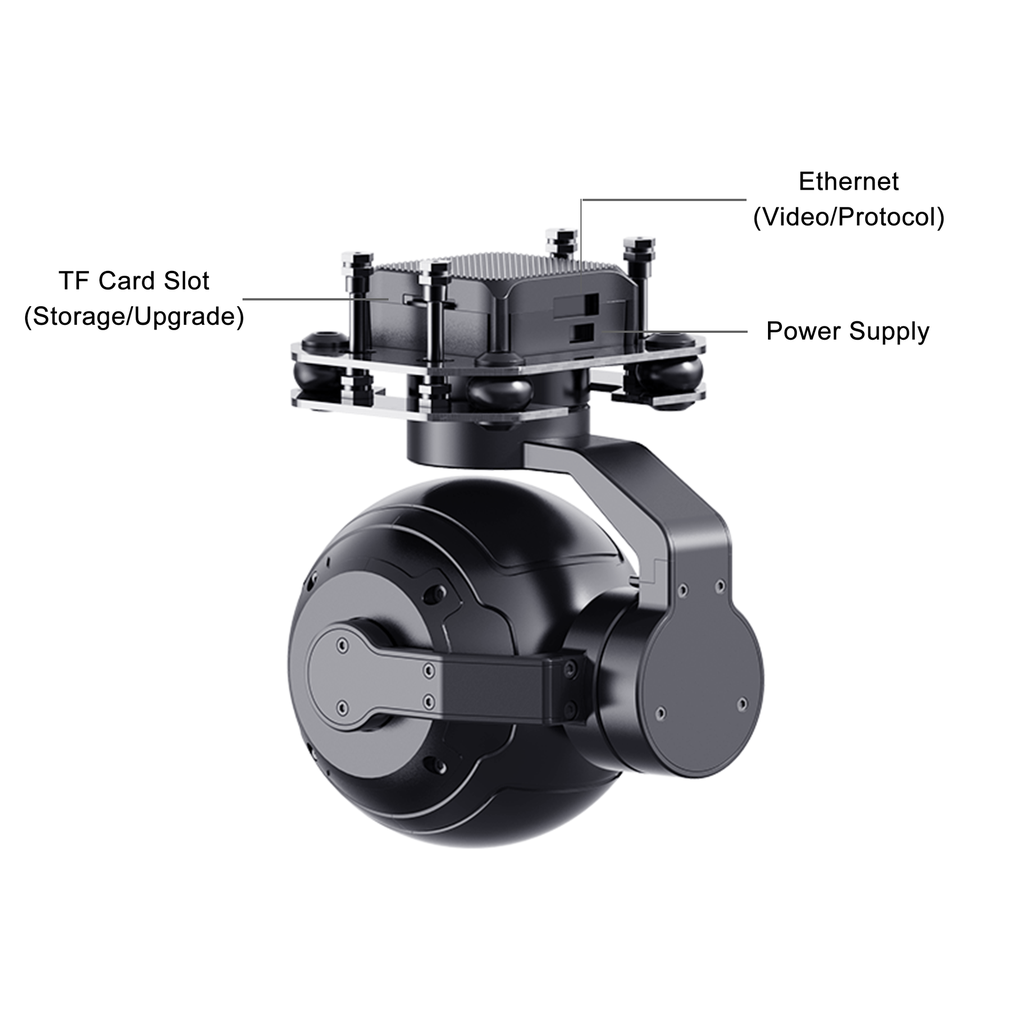

Video Output Port: Ethernet
Control Signal Input Port: S.Bus / PPM / UART / UDP
Working Voltage: 11 to 25.2 V
Power Consumption: 3 W
Working Temperature: -10 ~ 50 ℃
Waterproof Level: IP4X

Dimension: 121*101*78 mm

Weight: 381 g

Gimbal

Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -90° to +25°
Mechanical Pitch Angle: -135° to +45°
Controllable Yaw Angle: -45° to +45°
Mechanical Yaw Angle: -90° to +90°

Camera

Lens: 10X Optical Zoom (30X Hybrid Zoom)

Focal Length: 5.15±5% to 47.38±5% mm
Minimum Focus Distance: 200 mm
Image Sensor: 1/2.7”-inch, 4 MP effective resoultion

Aperture: F1.8 to F2.5

FOV: Diagonal 79.5°, Horizontal 71.5°

TF Recording Resolution: 2K (2560*1440) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Image Format: JPEG
Video Format: MP4 (Recorded in H265, *auto converted to MP4 after restart)
Supported MicroSD Cards: MicroSD Class10, Max 128GB

Still Photography Mode: Single

Metering Mode: Evaluative metering

Mark
Features marked with "*" are in development and can be updated later by firmware.

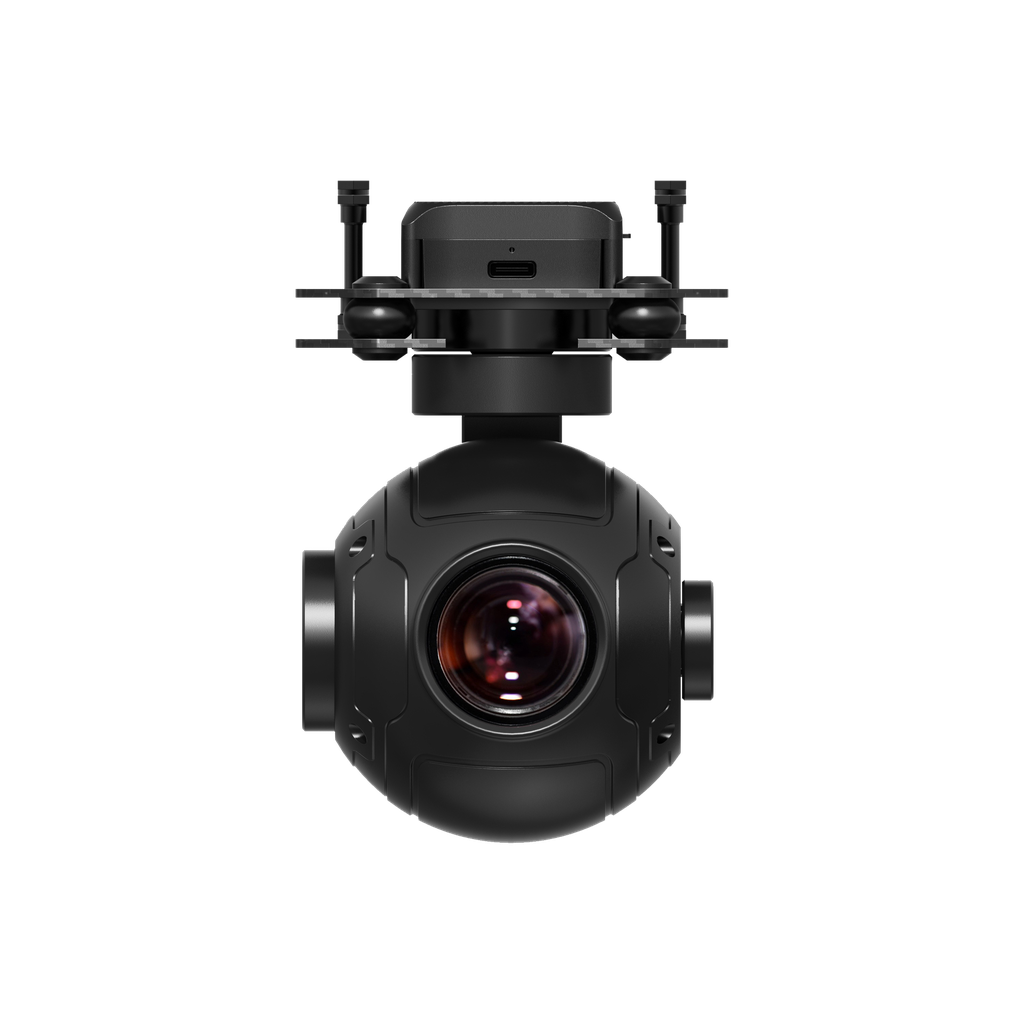

1x SIYI ZR10 2K QHD 30X Hybrid 10X Optical Zoom Gimbal Camera with HDR Starlight

1x Cable pack

Firmware
ZR10 Firmware Pack

Android App
SIYI FPV App
SIYI QGroundControl App

SIYI PC Assistant
SIYI QGroundControl
SIYI PC Assistant
