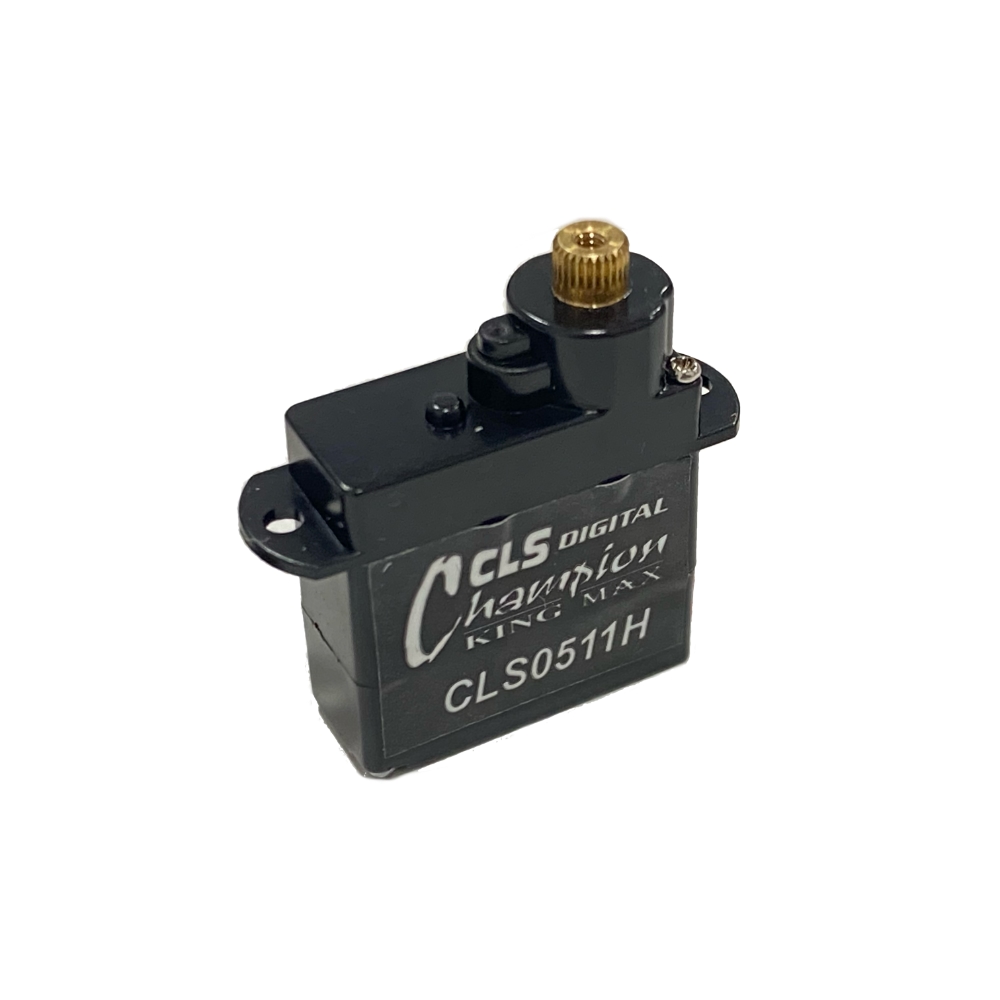

-- Programmable high performance micro digital servo
-- High-precision metal gears
-- High quality coreless motor
-- Ideal for 3D micro helis and 3D airplanes
Feature:
Gear：Full metal
Spline：Exclusive
Motor：Coreless motor
Bearing：1B
Dead band：2μs default
Waterproof：No
Operating Voltage：DC3.5~6.0V
Rated working voltage：DC 5.0V
Working frequency：1520μs/330hz
Working angle：±90°@500us-2500us
Working temperature：-10℃~+50℃
Storage temperature：-20℃~+60℃
Specs:
Operating Speed (3.5V): 0.07sec/60 degrees
Operating Speed (6.0V): 0.06sec/60 degrees
Stall Torque (3.5V): 0.6 kg.cm (8.33oz/in)
Stall Torque (6.0V): 1.1 kg.cm (15.28oz/in)

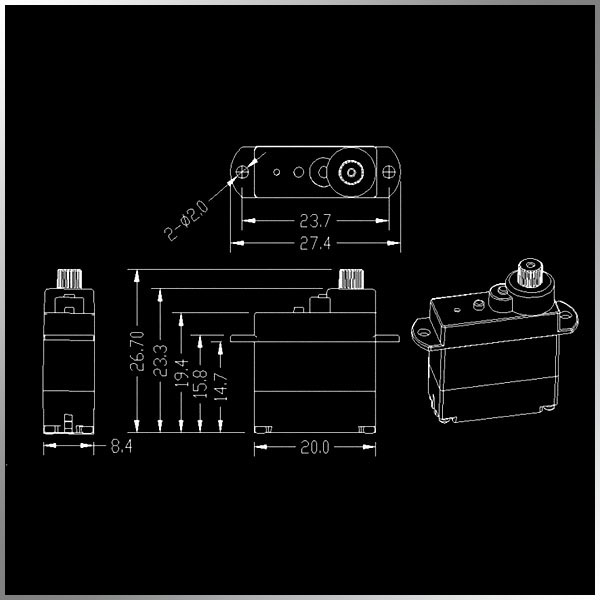

Dimensions: 20.9X8.4X23.3mm /0.82X0.33X0.92 in
Weight: 5.3 g (0.19oz)
Connector Wire Length: 160 mm
