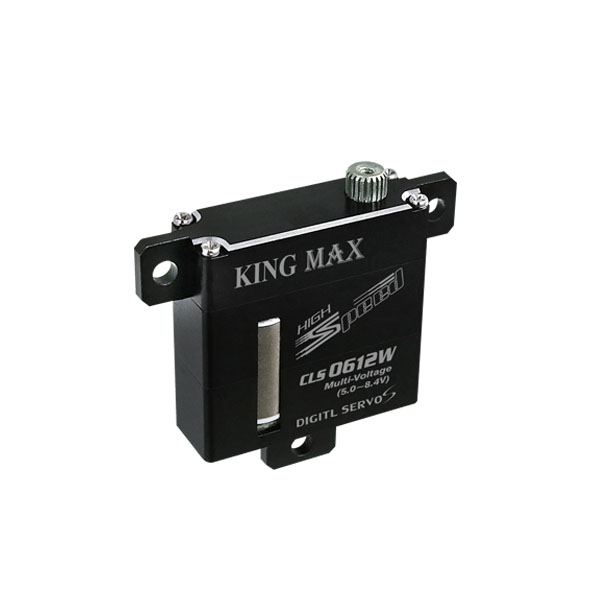

-- High performance, digital high voltage wing servo
-- High-precision metal gears with hard anodizing
-- Full CNC aluminium hulls and structure
-- High quality coreless motor
-- Dual ball bearings
Features:
Gear：Full metal
Spline：Mini 25T
Motor：Coreless motor
Bearing：2BB
Dead band：2μs default
Waterproof：No
Operating Voltage：DC5.0~8.4V
Working frequency：1520μs/330hz
Specs:
Operating Speed (5.0V): 0.14sec/60 degrees
Operating Speed (6.0V): 0.12sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.09sec/60 degrees
Stall Torque (5.0V): 5.4kg.cm
Stall Torque (6.0V): 6.2kg.cm
Stall Torque (7.4V): 7.5kg.cm
Stall Torque (8.4V): 8.5kg.cm
Dimensions: 30X10X30mm
Weight: 23g (0.81oz)
Connector Wire Length: JR 220 mm
