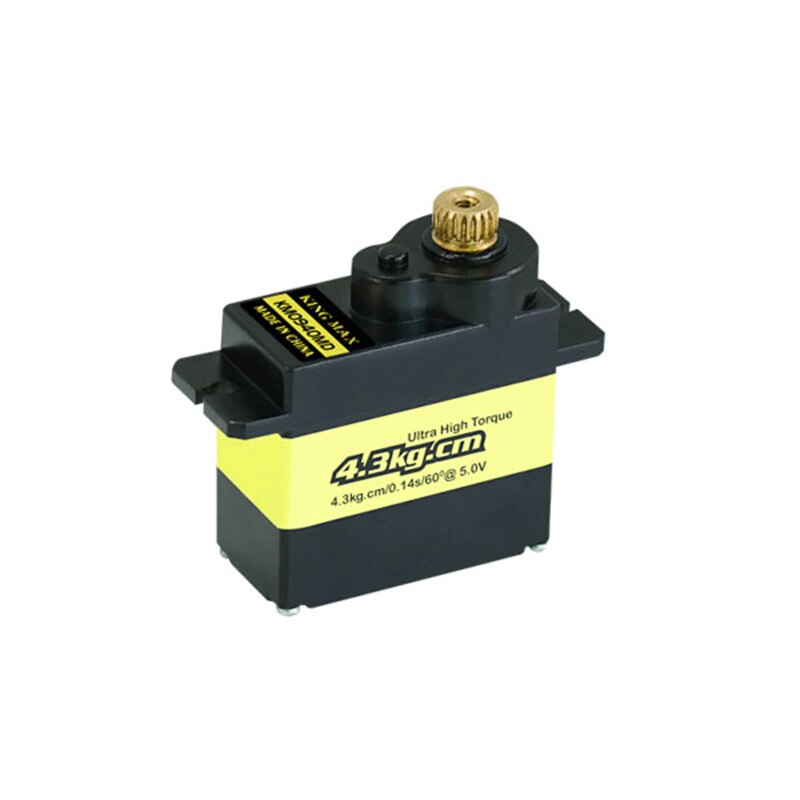

Kingmax KM0940MD 11.5mm 13g 4.6kg Digital Aluminium Gears
Programmable digital mini servo
High-precision metal gears for smooth action and durability
High quality brushed motor
Fetatures:
Gear：Full metal
Spline：Mini 21T
Motor：DC motor
Bearing：No
Dead band：4μs default
Waterproof：No
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequency：1520μs/330hz
Working angle：±90°@500us-2500us
Specs:
Operating Speed(5.0V):0.14sec/60degrees
Operating Speed(6.0V):0.12sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):4.6kg.cm(63.89oz/in)
Maximum working torque(7.4V):2.8kg.cm
Rated working torque(5.0V):0.5kg.cm(
Rated working torque(6.0V):0.8kg.cm
Rated working torque(7.4V):1.1kg.cm
Rated working torque(8.4V):1.3kg.cm(
Dimensions:23.8*11.5*21.6mm
Weight:13g
Connector Wire Length:300mm
