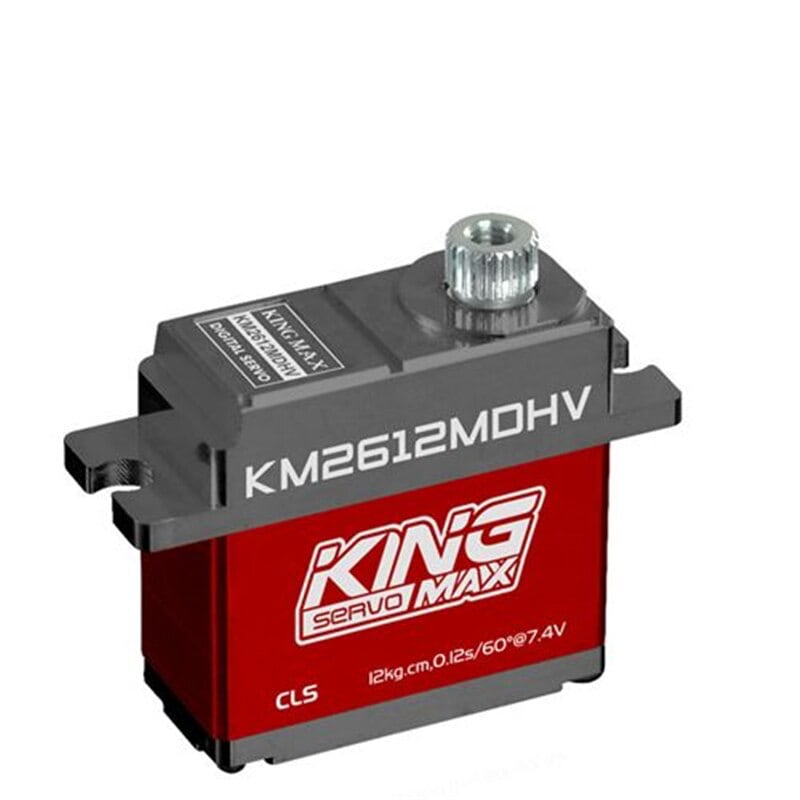

Kingmax KM2612MDHV 12.6mm 26g 12kg Digital Metal gears
-- High performance digital mini servo
-- High-precision metal gears
-- High quality coreless motor
-- Full CNC aluminium hulls and structure
-- Dual ball bearings
Features:
Gear：Full metal
Spline：Standard 25T
Motor：Coreless motor
Bearing：2BB
Dead band：2μs default
Waterproof：No
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequency：1520μs/330hz
Working angle：±63°@800us-2200us
Specs:
Operating Speed(5.0V):0.18sec/60degrees
Operating Speed(6.0V):0.15sec/60degrees
Operating Speed(7.4V):0.12sec/60degrees
Operating Speed(8.4V):0.11sec/60degrees
Stall torque(7.4V):12.0kg.cm(166.68oz/in)
Maximum working torque(7.4V):7.0kg.cm(97.23oz/in)
Rated working torque(5.0V):3.0kg.cm(41.67oz/in)
Rated working torque(6.0V):3.5kg.cm(48.61oz/in)
Rated working torque(7.4V):4.0kg.cm(55.56oz/in)
Rated working torque(8.4V):4.5kg.cm(62.50oz/in)
Dimensions:28*12.6*27mm/1.09X0.49X1.05in
Weight:26g(0.91oz)
Connector Wire Length:JR310mm(12.09in)
