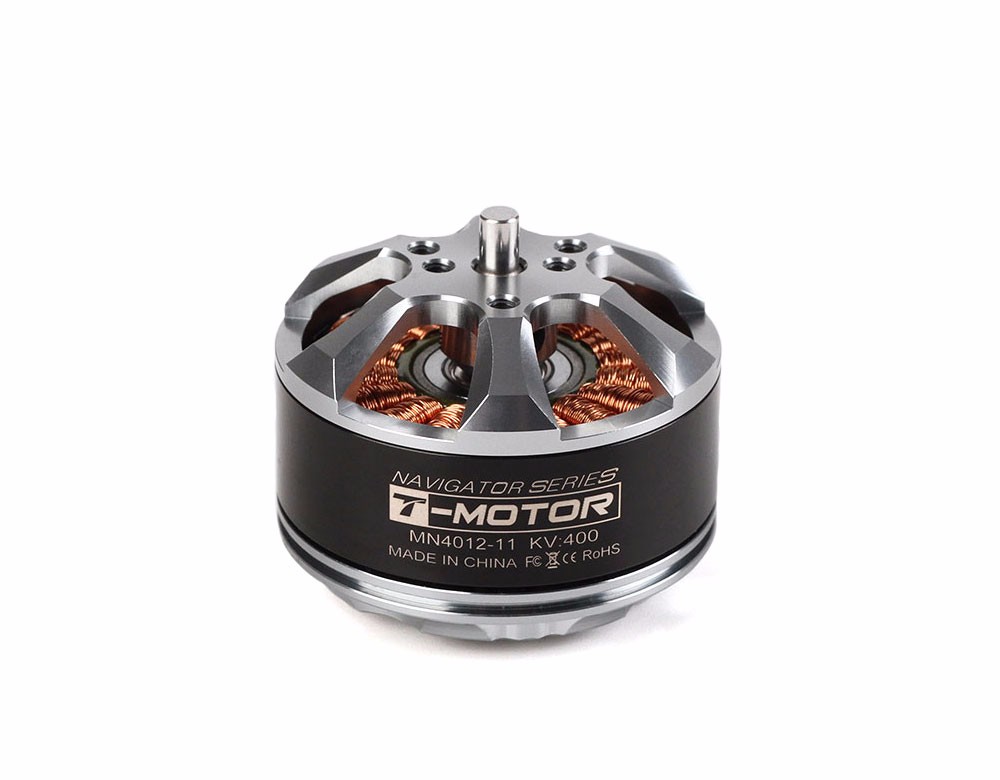

Specifications:
KV..............................................................................................................400
Configu ration.................................................................................18N24P
Stator Diameter.................................................................................40mm
Stator Length.....................................................................................12mm
Shaft Diameter....................................................................................4mm
Motor Dimensions(Dia.*Len)........................................Φ44.7×32.5mm
Weight (g).............................................................................................128g
ldle current(10)@10v(A)......................................................................1.0A
No.of Cells(Lipo).................................................................................4-8S
Max Continuous current(A)180S........................................................25A
Max Continuous Power(W)180S....................................................750W
Max. efficiency current..........................................................(4-10A)>80%
internal resistance............................................................................75mΩ
Specifications:
KV..............................................................................................................400
Configu ration.................................................................................18N24P
Stator Diameter.................................................................................40mm
Stator Length.....................................................................................12mm
Shaft Diameter....................................................................................4mm
Motor Dimensions(Dia.*Len)........................................Φ44.7×32.5mm
Weight (g).............................................................................................128g
ldle current(10)@10v(A)......................................................................1.0A
No.of Cells(Lipo).................................................................................4-8S
Max Continuous current(A)180S........................................................25A
Max Continuous Power(W)180S....................................................750W
Max. efficiency current..........................................................(4-10A)>80%
internal resistance............................................................................75mΩ
