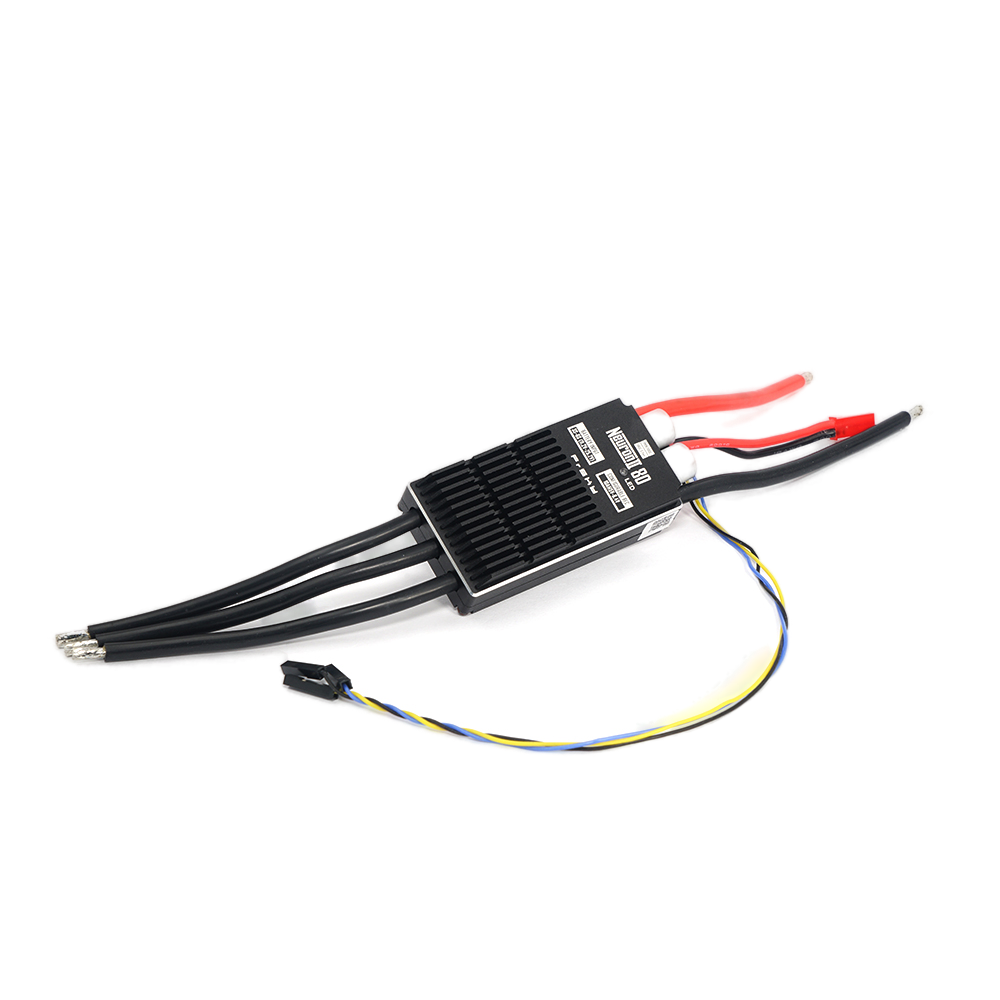

The Neuron II 80 is the latest telemetry ESCs designed for the professional build. No corners were cut in performance to bring to you this smaller feature-packed ESC. We’ve managed to reduce weight and diminish the size compared to the previous Neuron II 80 allowing for more space in the fuselage. The BEC function is enabled by using the included jumper cap to reduce power to the desired voltage.

Telemetry is integrated with features like a high-precision current sensor, voltage sensor, motor RPM, power consumption and an ESC temperature sensor. Features like DShot signaling and adjustable SBEC voltage that can be changed via LUA script. Encased in a CNC aluminum case which not only protects the ESC but also acts as a heat sink aiding in heat dissipation. As with most of FrSky products, the Neuron Series is completely S.Port compatible, allowing full use of our line of S.Port telemetry sensors.

Features:

• Reduced size with equivalent performance as Neuron 40

• S.Port and FPORT enabled and telemetry data transmission supported

• Telemetry data for ESC: Voltage, Current (Resolution 125mA, Precision ±2%), RPM, Power Consumption, Temperature.

• Telemetry data for SBEC: Output Voltage, Current (Resolution 50mA, Precision ±2%).

• High-performance32-bit microprocessor

• Over-temperature and over-current protection

• Adjustable SBEC (5A@5~8.4V) 10A
