Feature

Supports 2-14S & 200A Cont, 400A Burst

DroneCAN Communication Protocol

Small & Compact Design

Two 5V Output with Independent BEC IC and Circuitry

Separated Sensor and BEC Board to Minimize Electrical Noise Interference

Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)

High Accuracy Temperature Sensor for Temperature Monitor

High-Efficiency Aluminum Heat Dissipation Shell

Interface Type

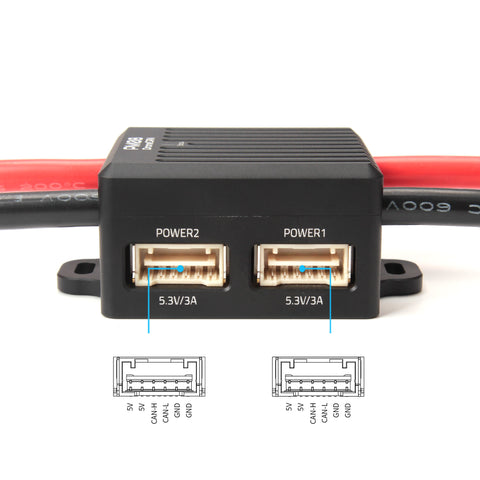

Power & CAN Port: Molex CLIK-Mate 2mm 6Pin

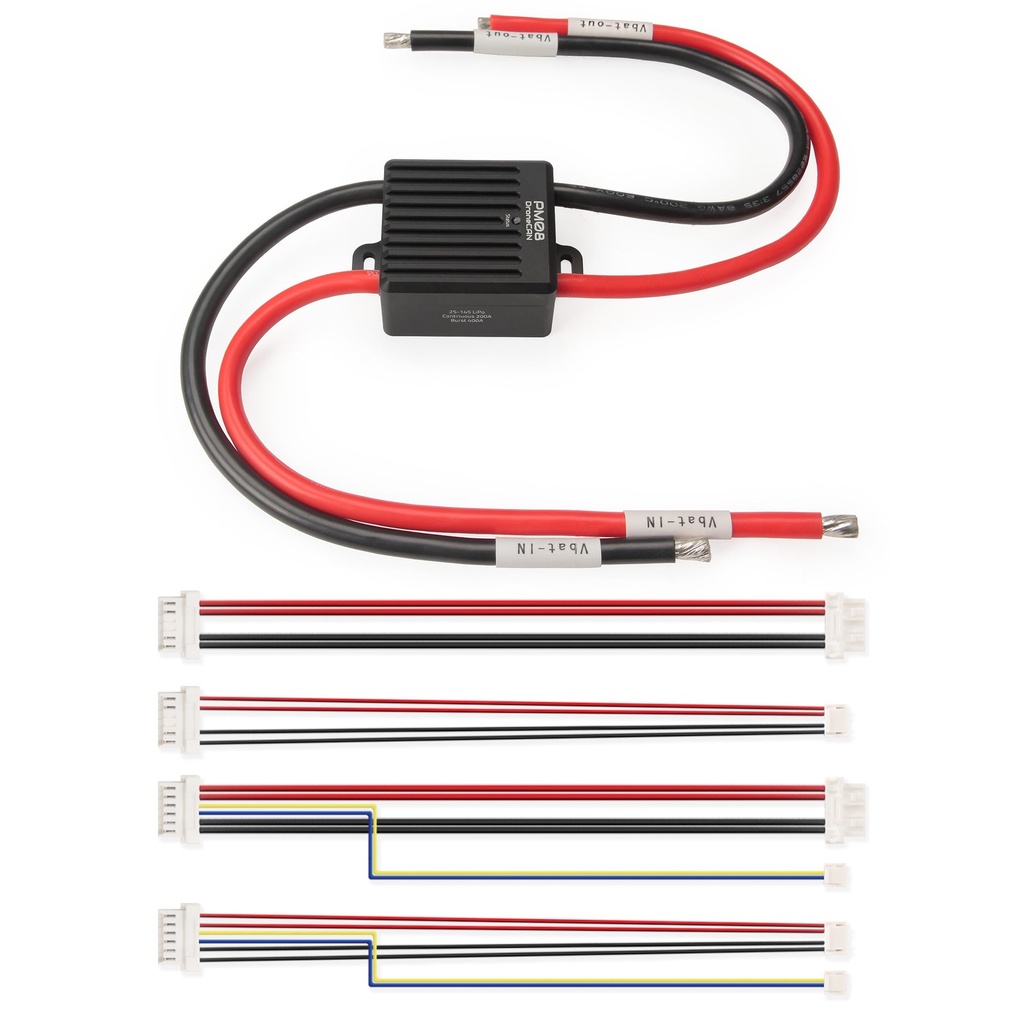

Battery IN/OUT Options:

XT90 Connectors

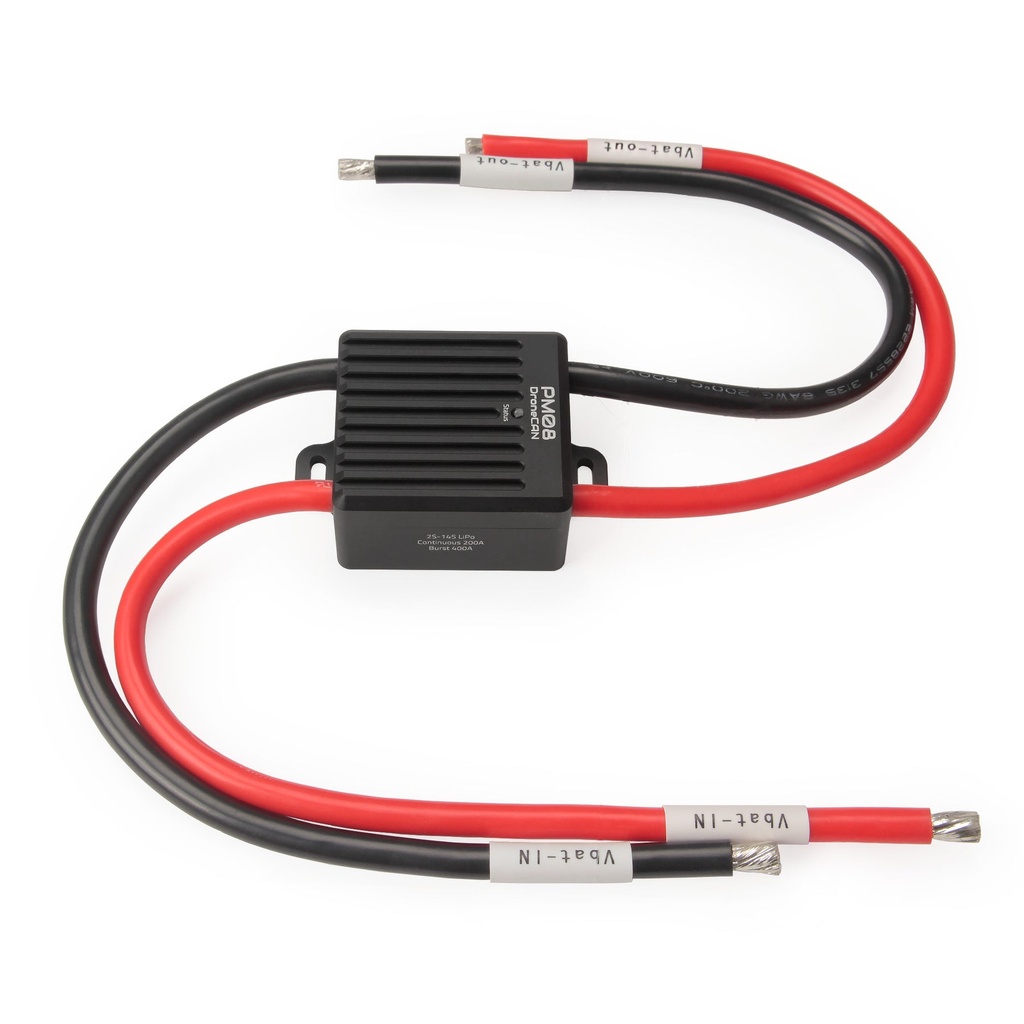

Tinned Wires

XT90 & Ring Terminals

Status LED

Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash

Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection

Flashing slowly (one-second intervals): CAN is successfully connected
