NEW VERSION 65A!!!

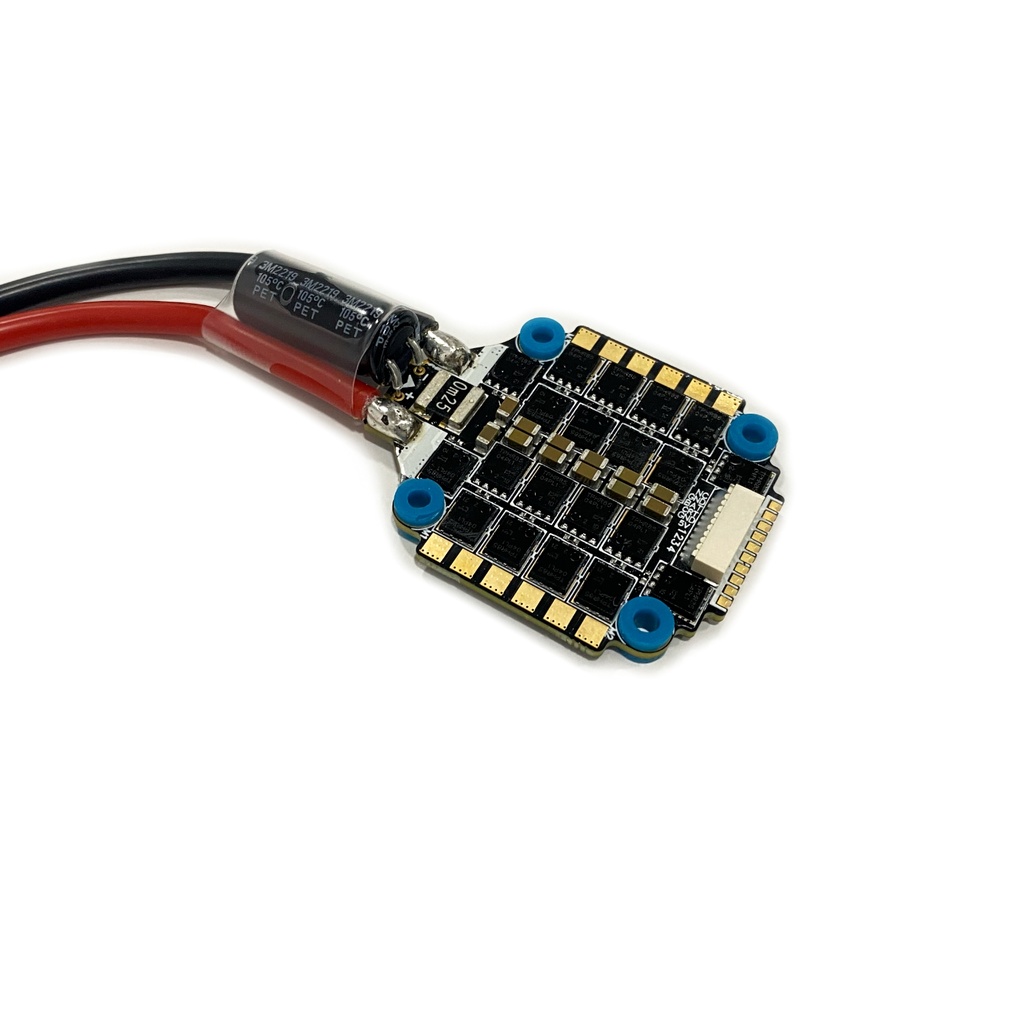

The 4-in-1 ESC not only includes 4 high-performance 65A ESCs, built-in BEC, but also an Amp/Volt monitoring port which allows FC to monitor the volt & amp in real time (on condition that the FC supports this function); it’s as small as a FC for FPV(s) and easy for installation and wiring. With the remarkably small size, it's a perfect match for competition FPV(s)
Features:
- Super Small & Light: ESCs with incredible small size and light weight are specially designed for competition FPV drones
- Quality components: 32 Bit ARM MCU 48Mhz , 3-in-1 drive IC, High quality American Fairchild MOSFETs
- BLHeli_S firmware ready: Users can flash or upgrade the BLHeli firmware via the signal cable (on ESCs), and program 4 ESCs simultaneously after connecting their flight controller to the BLHeliSuite software if the flight controller uses the CleanFlight firmware
- Damped Light Mode, OneShot125, DShot Mode Supported: Besides the regular PWM mode, Oneshot125/Oneshot42/Multishot modes, the latest DShot150/300/600/1200 modes are also supported. In DShot150/300/600/1200 modes, the ESC has great anti-interference performance and rapid response.
- Built-in BEC: 5V @ 0.6A
- Hardware Generated PWM & Damped Light Mode: The ESC firmware uses hardware generated motor pwm for smooth throttle response and silent operation. Damped light does regenerative breaking, causing very fast motor retardation, and it inherently also does active freewheeling.
- Innovate shock-absorbing structure: The innovate connecting method via soft cable with F4 G2 controlller combined with shock-absorbing mounting design holes.
