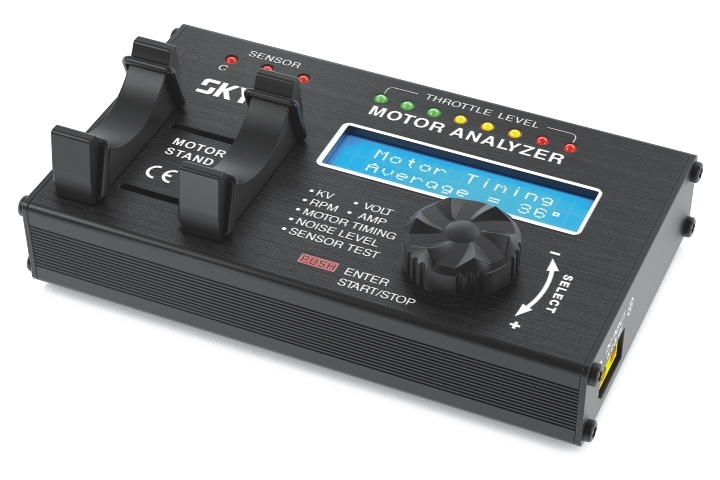

MOTOR ANALYZER
SKYRC motor analyzer is a precision electronic device that is especially designed for measuring the KV value, RMP, current drawn, motor timing, vibration noise level and checking the function of hall effect sensors of a brushless motor. It comes with a 2X16 characters LCD that is able to display real time measuring value of either sensor or sensor-less brushless motor.
| Dimersions |  | ||
| Net Weight | 282gram (Without Cabel) | ||
| Input Voltage | 7.4-8.4V (Suggested to Use 7.4V 2S 1P LiPo Battery) | ||
| LCD Display Screen | Blue Backlight Background, White Text, 16 Characters X 2 Lines | ||
| KV Value Accuracy | +/- 3% | ||
| Motor Timing Accuracy | +/- 4% | ||
| Motor Timing Range | 0-70° | ||
| Noise Level Measurement Range | 60dB - 120dB | ||
| Supported Motor | Sensor or Sensor-less Brushless Motor (2 Poles to 36 Poles) | ||
| Current Drawn Less Than 30A at 8.4V Without Loading | |||
