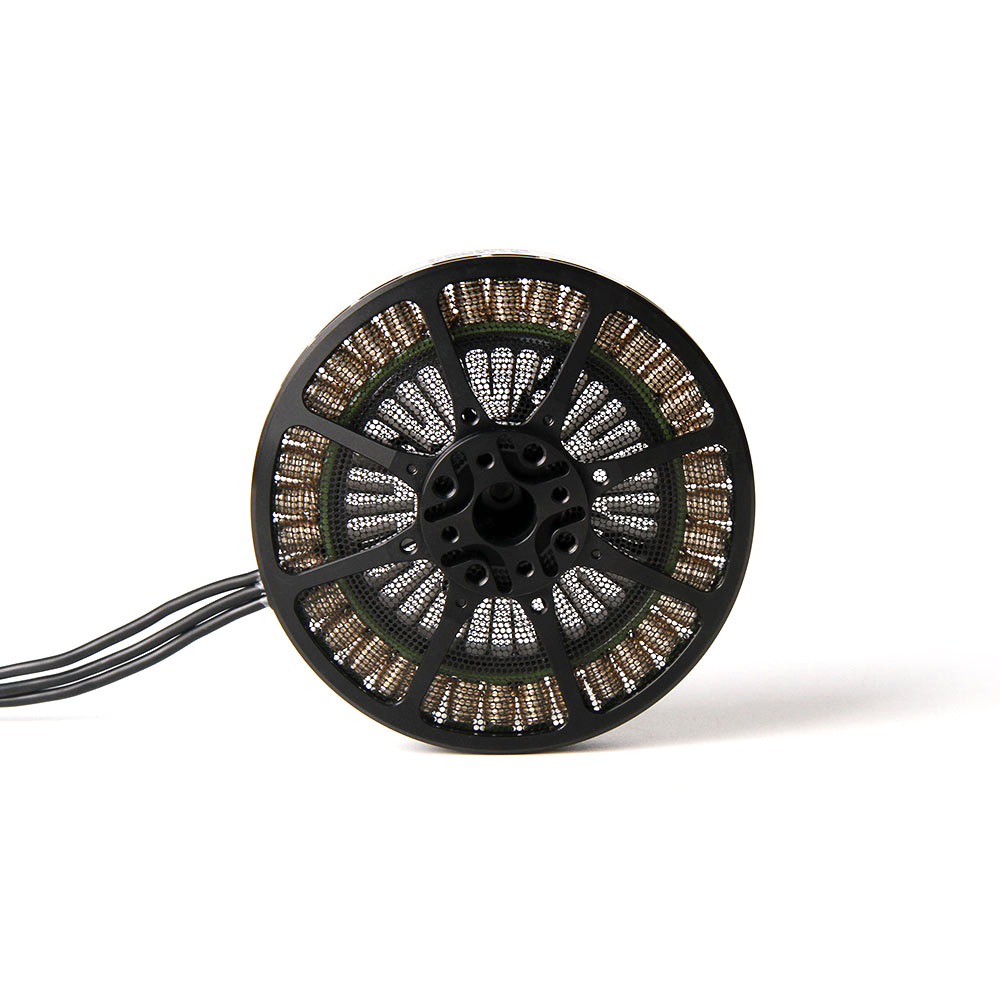

New generation of UAV motors, the new U8 Lite motor has been improved, improving efficiency with 14 new patents. Motor life has been lengthened by improvements in cooling and oversized bearings.
FEATURES:
- Flight time 5% longer
- Max. Thrust 7kg
- The brand new gridding design ensure perfect cooling, reduce 20℃ - 30℃
- Motor protection IP55
- Motor service life-- 1500 flights (40mins/flight)
- Support with FOC ESC
- Curved Magnets
- 14 New patents
- Imported custom silver wires
KV.................................................................................................................85
Configuración...................................................................................36N42P
Diametro Motor (Dia.*Len)................................................Φ87.1×27.05mm
Diámetro eje .........................................................................................15mm
Peso (g)....................................................................................................243g
Consumo minimo @22.2v(A)..................................................................0.5A
Nº celdas LiPo...........................................................................................12S
Protección IP........................................................................................... IP35
Max consumo continuio (A)180S............................................................20A
Max potencia continua (W)180S..........................................................960W
Resistencia interna..............................................................................225mΩ
ESC...................................................................Flame 60A HV / Apha 60A HV
Hélice recomendada..................................................................28 ~ 29 inch
Quadcopter KG (28"CF)..........................................................................10KG
Hexacopter KG (28"CF)...........................................................................15KG
New generation of UAV motors, the new U8 Lite motor has been improved, improving efficiency with 14 new patents. Motor life has been lengthened by improvements in cooling and oversized bearings.
FEATURES:
- Flight time 5% longer
- Max. Thrust 7kg
- The brand new gridding design ensure perfect cooling, reduce 20℃ - 30℃
- Motor protection IP55
- Motor service life-- 1500 flights (40mins/flight)
- Support with FOC ESC
- Curved Magnets
- 14 New patents
- Imported custom silver wires
