Discover the remarkable speed, torque, and precision of the KST A08 LV micro coreless servo! Tailored for unpowered gliders and optimized for 1S LiPo batteries, the A08 LV delivers an impressive 0.15 sec/60° speed and 2.0 Kgf.cm of torque. Designed to meet the rigorous demands of competitive gliding, this servo combines ultra-fast response with robust torque output, ensuring peak performance. Its lightweight construction and various mounting tab options make the A08 LV a perfect fit for your glider's requirements, offering exceptional precision and reliability on every flight.

Feature

DC4.2V, Supports 3.5V Low Voltage Setups

Optimized for 1S LiPo Batteries

High Torque & Exceptional Speed

Compact and Lightweight

Dual Ball Bearings

Coreless DC Motor

Ideal for Unpowered Gliders

Specification

Item: A08 LV V6.0 Servo

Rated Voltage: DC4.2V

Voltage Range: DC3.5V-4.2V

Torque: 1.2Kgf.cm@3.5V / 2.0Kgf.cm@4.2V

Speed: 0.18sec/60°@3.5V / 0.15sec/60°@4.2V

Working Frequency: 1520μs/333Hz

Default Travel Angle: ±60° =120° Total

Temperature Range: -10℃.......+65℃

Case Material: Aluminium Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Ball Bearing: 2BB

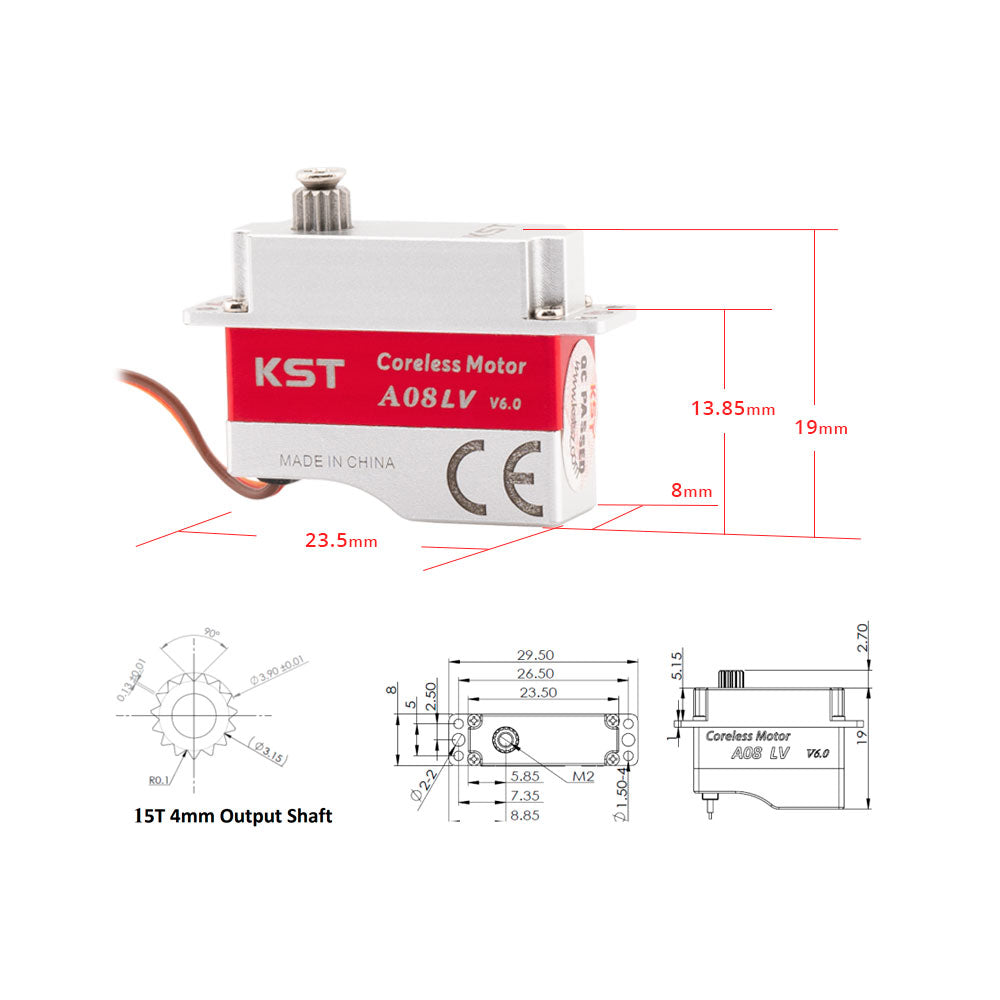

Case Dimensions: 23.5mm*8mm*19mm±0.2mm

Weight: 7g±10%
