Digital Air Speed Sensor Matek ASPD AUAV-L30D CAN UAVCAN

110.00 €

Add to Cart

Brand: Mateksys

True Stock of Products
Fast & Free Shipping*
Secure Payment

Share :

Guaranteed safe checkout

Description

Digital Air speed sensor for Matek and open source flight controllers, CAN, UAVCAN I2C Protocol.

Features

ArduPilot AP_Periph L431 CAN node
AUAV-L30D Sensors
CAN & I2C
Speed Range: 400 km/h(111 m/s)

Specifications

Accessories	Accessories - Sensors

Ratings and Reviews

Technical

ArduPilot AP_Periph L431 CAN node
All sensors AUAV-L30D

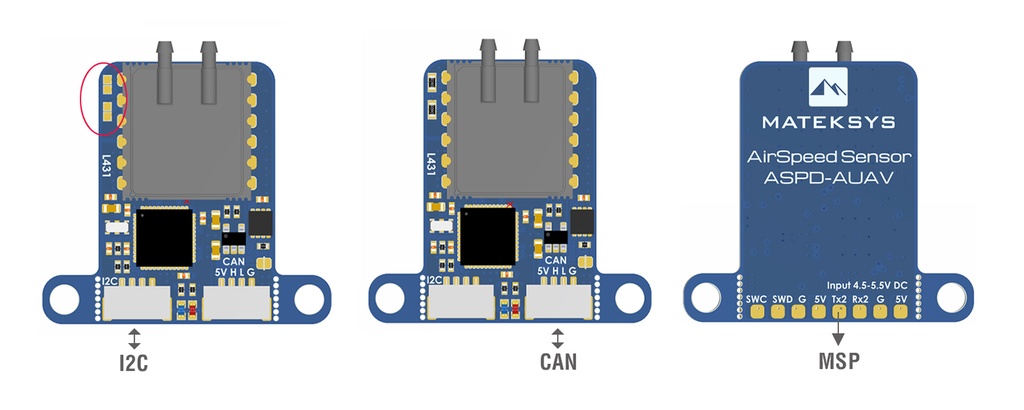

CAN & I2C Interface
CAN JST-GH connector, DroneCAN Protocol
I2C JST-GH connector, AUAV-L30D I2C mode
TX2, MSP protocol
CAN bootloader LED, Blue
- Fast blinking, AP_Periph bootloader
- Slow blinking, CAN Node ready
3.3V Power LED, Red
Input voltage range: 4.5~5.5V
Power consumption: 26mA
Operating Temperatures: -30°C to 85°C
Pressure Range: 7500Pa (± 30 inH2O)
Burst Pressure: 103kPa
Speed Range: 400 km/h(111 m/s)
36mm*32mm*7.3mm
5g
3D step file ASPD-AUAV_STEP.zip

In the Box

1x ASPD-AUAV

2x JST-GH-4P to JST-GH-4P 20cm silicon wire

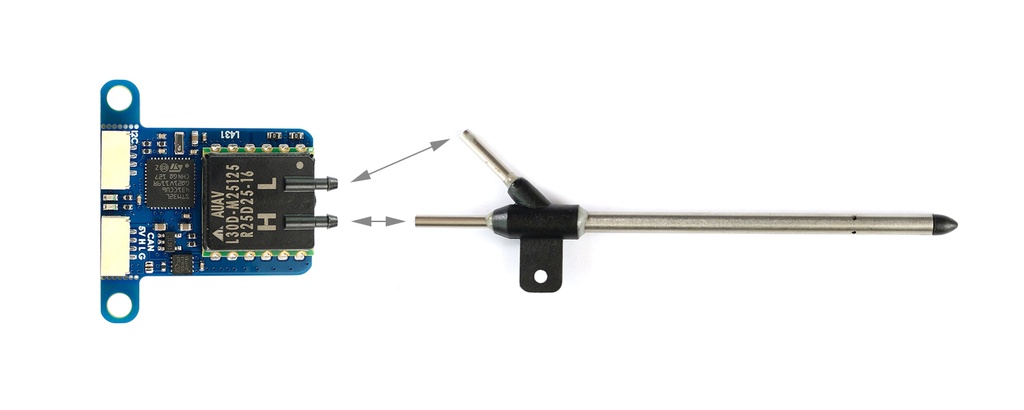

1x Pitot Tube

Clear silicon tubing 40cm

Downloads

Firmware https://firmware.ardupilot.org/AP_Periph/latest/MatekL431-AUAV/
AP_Periph https://github.com/ArduPilot/ardupilot/blob/master/Tools/AP_Periph/README.md
DroneCAN protocol https://dronecan.github.io/
