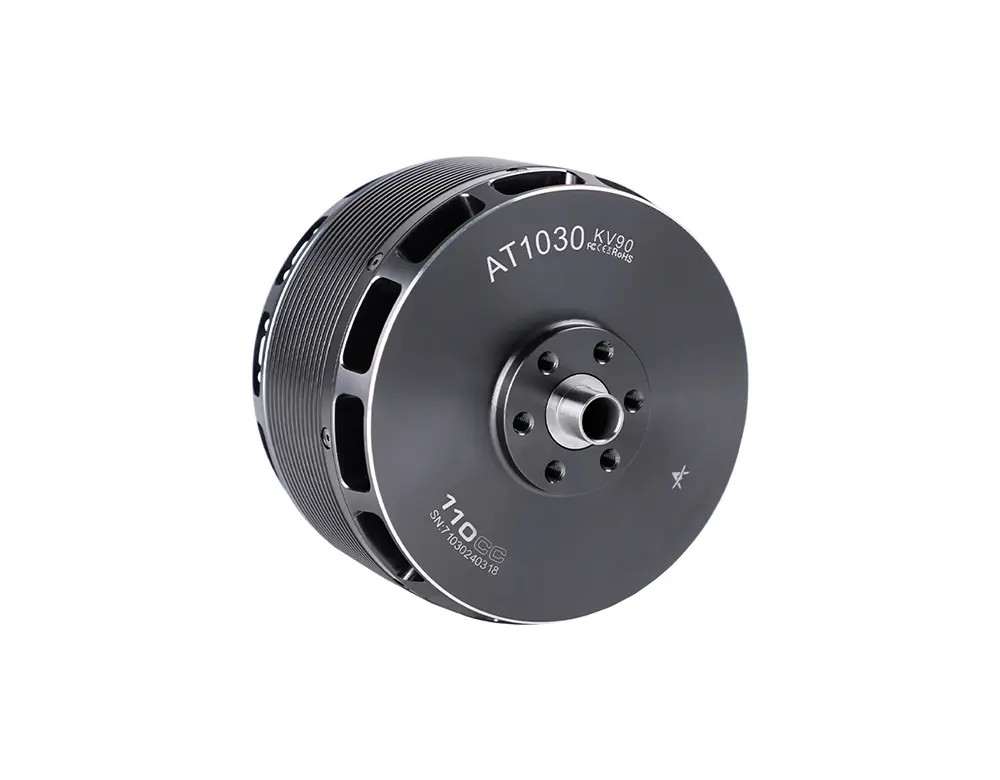

The T-MOTOR AT1030 fixed-wing motor is engineered to replace traditional 110CC gas engines, delivering superior electric propulsion for heavy-lift drones. With a max continuous power of 4000W and 28kg of max thrust, this motor ensures unmatched performance for UAVs with takeoff weights of 55-60kg. Designed for reliability and safety, it integrates cutting-edge thermal management and real-time monitoring for seamless operation.

Key Features:

• 110CC Engine Alternative: Perfect for transitioning from gas to electric propulsion.
• Max Thrust & Power: 28kg thrust and 4000W continuous power for heavy-duty applications.
• 24S Compatibility: Pairs with Thunder 200A 12-24S ESC and 26x12" propellers for optimal efficiency.
• Real-Time Monitoring: Magnetic encoder compatibility ensures safe RPM tracking.

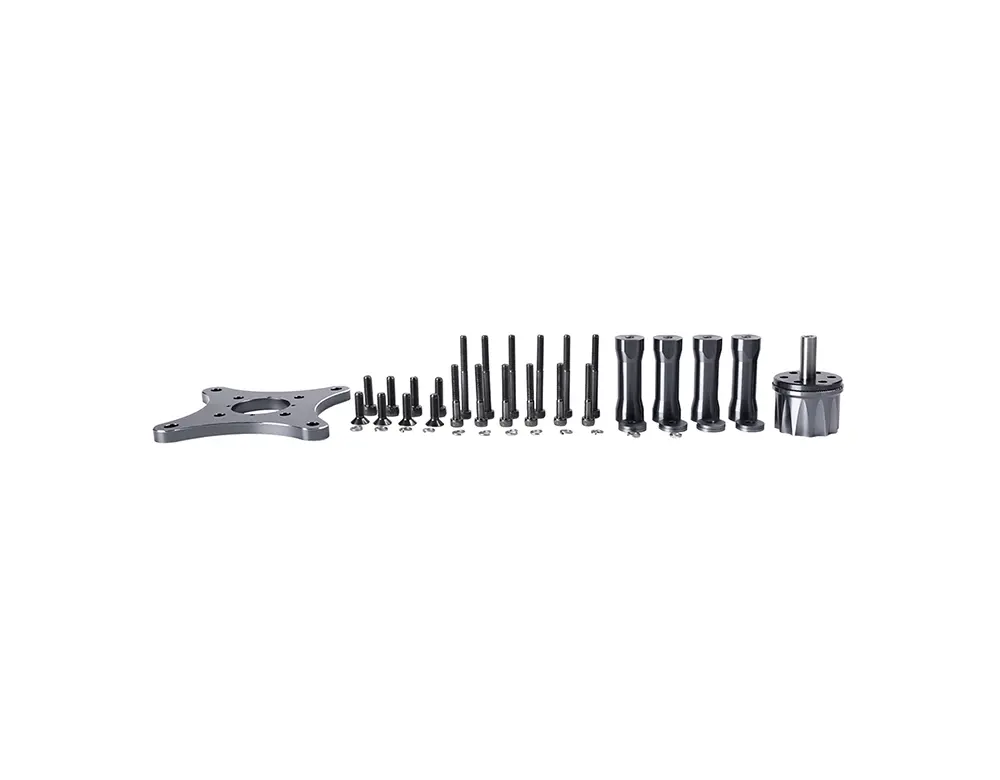

• Removable Propeller Hubs: Supports fixed-wing, folding, and multi-prop setups.

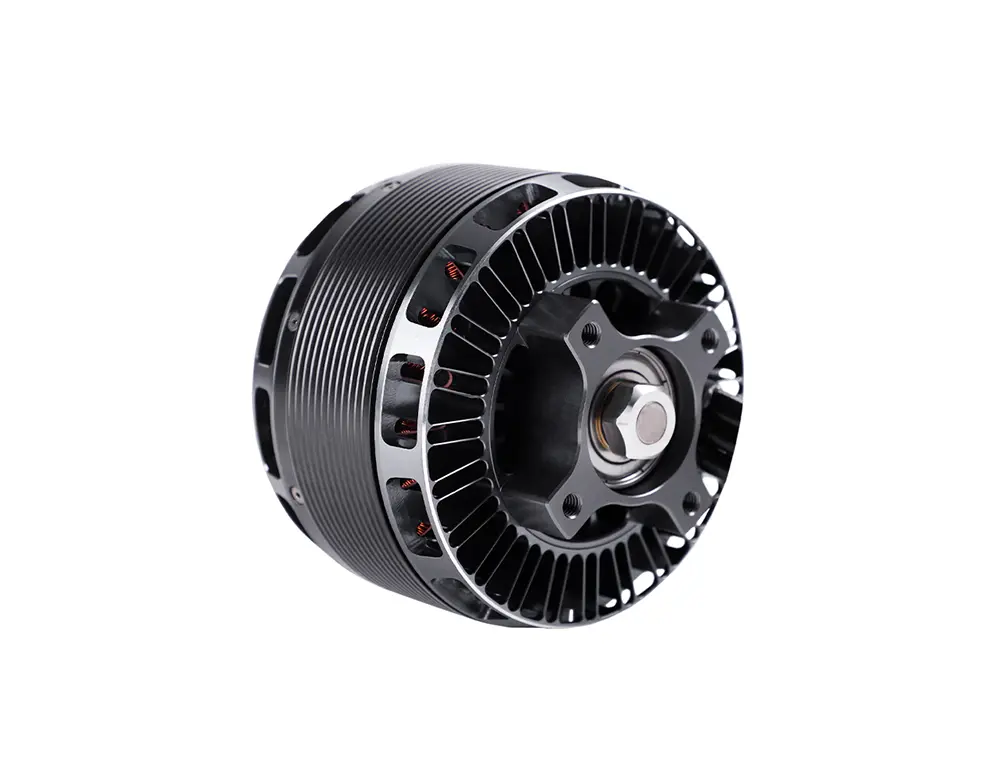

• Advanced Cooling: Bottom-mounted heatsink extends motor lifespan even under high loads.

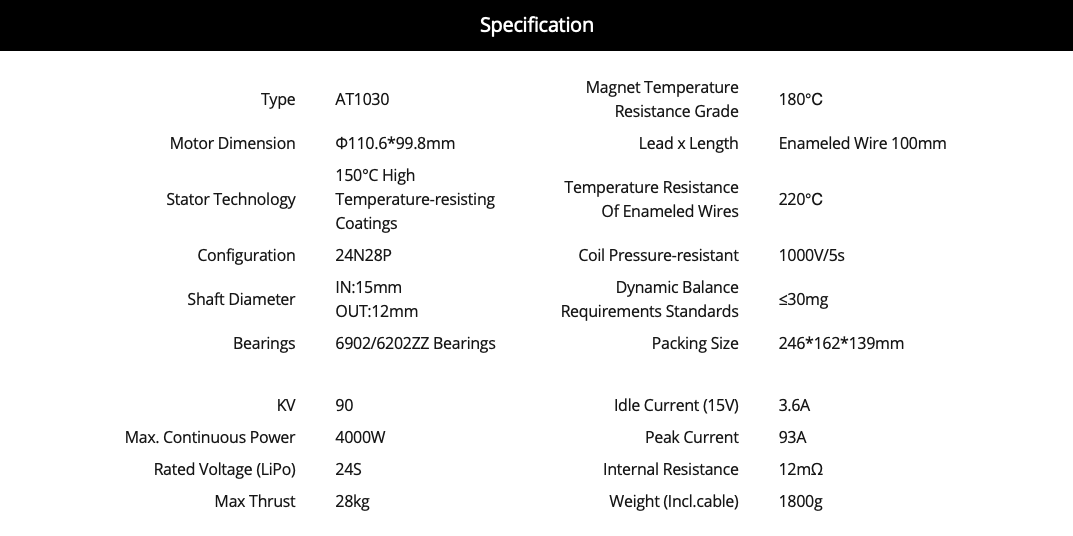

Technical Specifications

• KV Rating: 90 | Rated Voltage: 24S LiPo
• Max Current: 93A | Idle Current (15V): 3.6A
• Stator Technology: 150°C high-temp resistant coatings
• Shaft Diameter: 15mm (in) / 12mm (out)

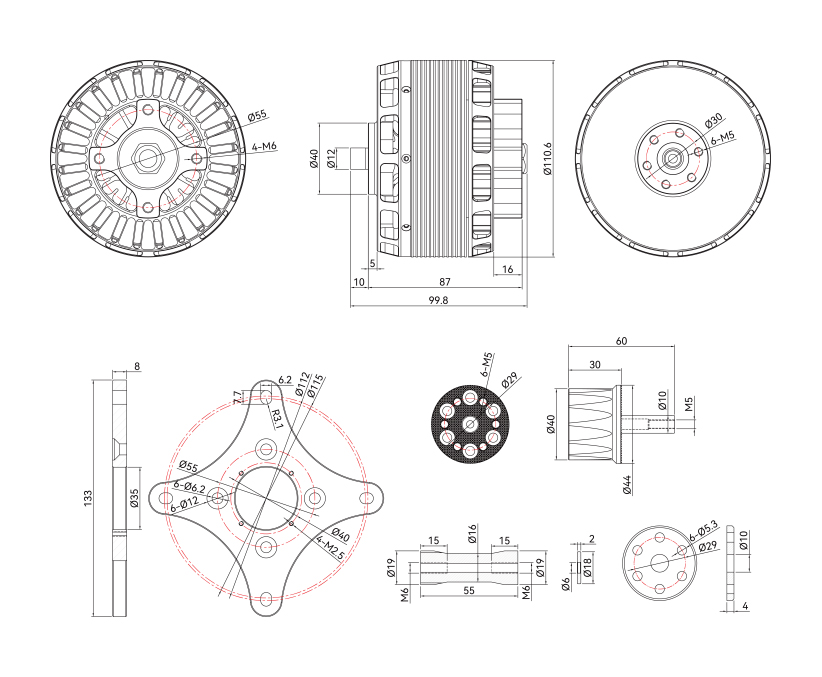

• Weight: 1800g (incl. cables) | Dimensions: Φ110.6x99.8mm

Why Choose the AT1030?

Precision Engineering: 24N28P configuration and dynamic balance ≤30mg ensure smooth, vibration-free operation.

Durability: 6902/6202ZZ bearings and 220°C-rated enameled wires withstand extreme conditions.

Versatile Applications: Ideal for agricultural drones, cargo UAVs, and industrial fixed-wing platforms.

Optimized for Safety & Longevity：The AT1030’s 1000V pressure-resistant coils and real-time speed monitoring prevent overheating and motor failure, making it a reliable choice for mission-critical flights. Its lightweight design and efficient heat dissipation reduce energy waste while maximizing flight time.
