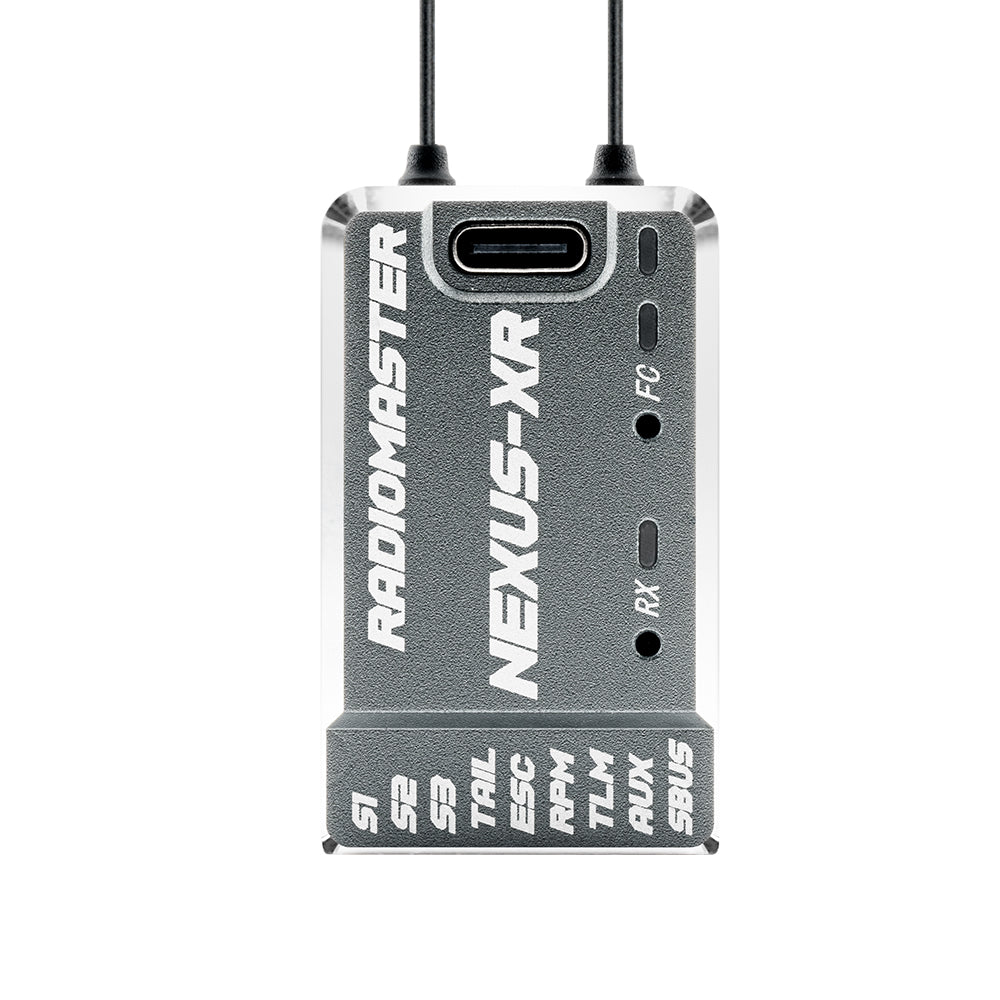

    Radiomaster NEXUS-XR Helicopter Flight Controller Integrated 2.4GHz ExpressLRS Receiver

    69.99 € 69.99 €

    •  True Stock of Products
    Share :
    Guaranteed safe checkout

    The Nexus-XR revolutionizes helicopter flight controllers by integrating a cutting-edge ExpressLRS receiver with dual Semtech SX1281 2.4GHz transceivers. This built-in receiver delivers exceptional RF performance, superior range, reliability, and effortless setup. It eliminates the need for external receivers, simplifying installation and reducing weight.


    At the core of the Nexus-XR is the powerful STM32F722 MCU, paired with the ICM42688P 6-axis MEMS motion-tracking device. This device provides excellent vibration resistance and enhanced signal rejection, making it ideal for electric and nitro helicopters.


    The Nexus-XR features several key upgrades. An improved BEC delivers more stable power to electronics, enhancing reliability, while the external voltage input now supports a range of 3.6V to 70V. Memory has been upgraded to 256MB, enabling longer flight logs. The CNC-machined aluminum case is sleeker yet still serves as a protective shield and heat sink, keeping the system cool during intense flights.


    Designed for ultimate convenience, the Nexus-XR’s compact, rugged build fits a wide range of helicopter sizes, and delivers top performance in demanding conditions.





    Features


    • Integrated ExpressLRS Receiver: Dual Semtech SX1281 2.4GHz transceivers for seamless RF
    • Optimized for Rotorflight 2.2: Engineered for peak performance and compatibility.
    • Precision Control: STM32F722 MCU and ICM42688P 6-axis gyroscope/accelerometer for superior flight dynamics.
    • Flight Logging: 256MB onboard flash memory for detailed logging and tuning.
    • Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
    • Plug’n’Play ExpressLRS: Solder-free locking connector for RP3-H ExpressLRS receivers (sold separately).
    • More PWM Pins: Additional pins for expanded control in complex setups.
    • CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
    • Tail Servo/ESC Support: Compatible with 760μs/1520μs tail servos and ESCs
    • 12V Servo Support: Capable of supporting 12-volt servos.
    • Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
    • Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
    • Isolated Power Supplies: Dedicated 1.8V (gyro), 3.3V (MCU), and 5V (interfaces) to minimize noise.
    • USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
    • Compact and Lightweight: Ideal for any helicopter build.
    • Rotorflight Rescue: Standard feature for enhanced safety in emergencies
