    2. 960H CCD Ultra WDR Sony Effio-V 800TVL Mini Camera DC5-15V 30x30mm

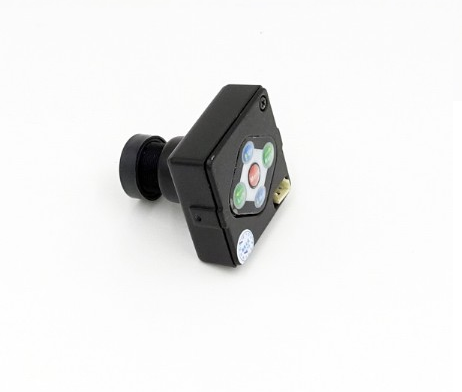

    960H CCD Ultra WDR Sony Effio-V 800TVL Mini Camera DC5-15V 30x30mm

    https://rc-innovations.es/web/image/product.template/18433/image_1920?unique=3a05f45
    (0 review)

    73.21 € 73.21000000000001 EUR 85.00 € VAT Included

    70.25 € VAT Included

    14% Off

    Not Available For Sale

    Ex. VAT: 58.06 €

    Days
    :
    Hours
    :
    Mins
    :
    Secs

    This combination does not exist.

    Product Image
  • Camera

    • 960H CCD Ultra WDR Sony Effio-V 800TVL Mini Camera DC5-15V 30x30mm

    85.00 € 73.21 €
    Add to Cart
    Contact Us
    SKU:
    N/A
    Brand: Otros
    Share :

    Fetures:
    * Pinhole lens, wide angle lens, vari-focal lens are available for options.

    * Compact size for & wide range power supply DC 5-15V, more convenient for different applications.
    * Day&Night, Color , B/W for option; or you can set time to process the picture changing from Color to B/W .
    * The Shutter,Gamma, AGC,White Balance is adjustable,getting your favorite picture during the varying lighting condition .
    * Nice back light compensation, used for the ATM surveillance or under sharp contrast in lighting conditions like FPV (aeria video), etc.

    > 1/3" SONY double-scan CCD
    >     SONY Effio-V,CXD4141GG
    >     800TVL Resolution
    > 0.01Lux / F2.0
    > AGC,Shutter,Privacy,Motion,HLC/BLC
    > Day & Night
    > WDR, ATR-EX2,
    > E-Zoom,DIS ,3D-DNR
    > Built in OSD menu
    > Compact size:30x30mm


    Model No.

    CSY3130EV

    Image Device

    1/3" SONY double-scan CCD Effio-V

    Scanning System

    2:1 Interlace

    Scanning Frequency

    PAL : 15.625 KHz(H), 50Hz(V) / NTSC : 15.734 KHz(H), 59.94 Hz(V)

    H. Resolution

    800TVL

    Effective Pixels

    PAL: 976 (H) X 582(V) / NTSC: 976 (H) X 494 (V)

    S/N Ratio

    More than 52dB(AGC 0FF)

    Min. Illumination

    0.01 Lux / F2.0

    Shutter

    Auto,Manual,Fix

    AGC

    6DB~44.8DB

    White Balance

    ATW, PUSH/PUSH LOCK, USER1/USER2, MANUAL

    WDR,ATR-EX

    Normal/Light

    DNR

    3D-DNR

    Day&night

    Color, Auto, B/W

    Privacy

    Off, On(15 area)

    Motion Detection

    Off, On(4 area)

    E-Zoom,DIS

    Off / On(0~255)

    HLC/BLC

    OFF/ BLC/ HLC

    Language

    English, French,Russian, Spanish, Dutch,Chinese, Japan, Portuguese

    Lens

    3.6mm board lens(optional)

    Power Comsumption

    DC 5-15V

    Dimensions (mm)

    30x30mm
