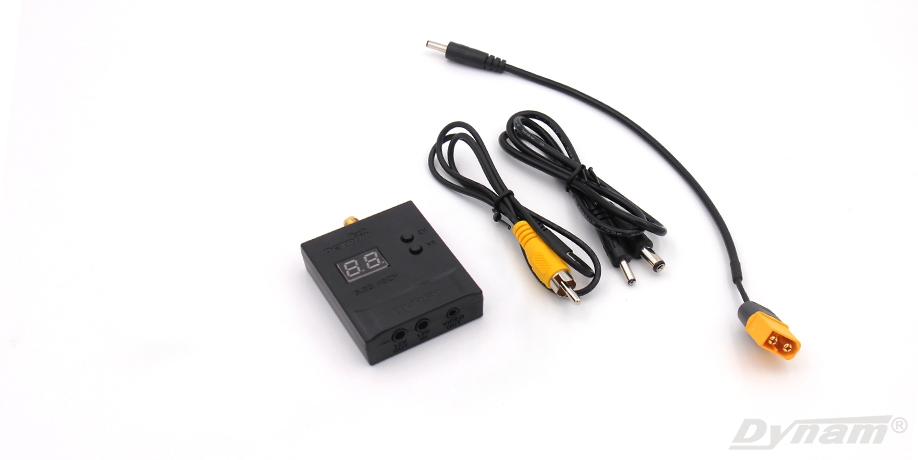

DVR58 is a 48 channels 5.8G wireless receiver, used on the ground station, for FPV use. It can receive the video signal from DVT58, demodulate it and send it to a monitoring display.
Features
- 48 channels adjustable, the channel number can be displayed on the LED digital displays
- DVR58 has a 12V/1A output interface, providing a stable voltage for the display
Specifications
Working Frequency: 5.8GHz ISM
Channel: 48 CH
Input Voltage: DC 7V~17V
Supply Current: 80mA/12V
Output Voltage: 12V
Video Output Impedance: 75Ω
Working Temperature: -40~85℃
Dimension (L×W×H): 62.8×45×14.5mm
Weight: 28g (without antenna)
