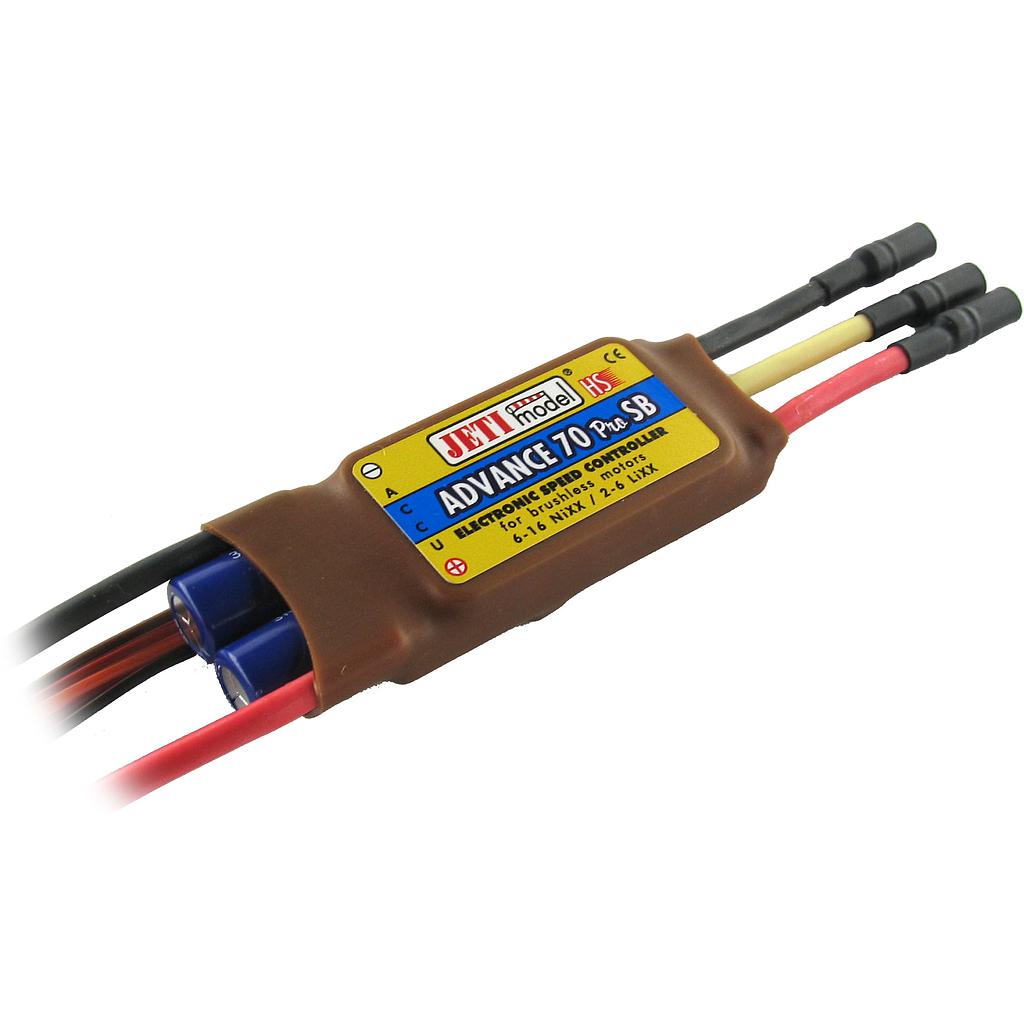

The ADVANCE Pro SB HS series controllers are designed to control and control "brushless" motors (BLDC). With this controller, all our many years of experience in the field of motor control have been used. The controllers meet all the demanding requirements of the user and, together with the new ProgCard Pro programming card, will satisfy even the most demanding user. As standard, the controller offers thermal protection, battery protection against overload and current limitation. This type of regulator has an integrated stabilized voltage source to power the receiver and servos called BEC. This version of the controller has a BEC switching circuit and is suitable for high speed motors.

SB: BEC switching circuit.

HS: high speed. Suitable for high speed motors.

Parameters:

• Dimensions: 53x26x13 mm
• Weight: 56g
• Telemetry: No
• Supply voltage: 5 - 25.2 V
• Continuous current: 70 A
• BEC voltage: 5.5 V
• Max. BEC: 5 A
