    2. Kingmax KM5514MDHV 20mm 59g 13kg Digital Metal Gears

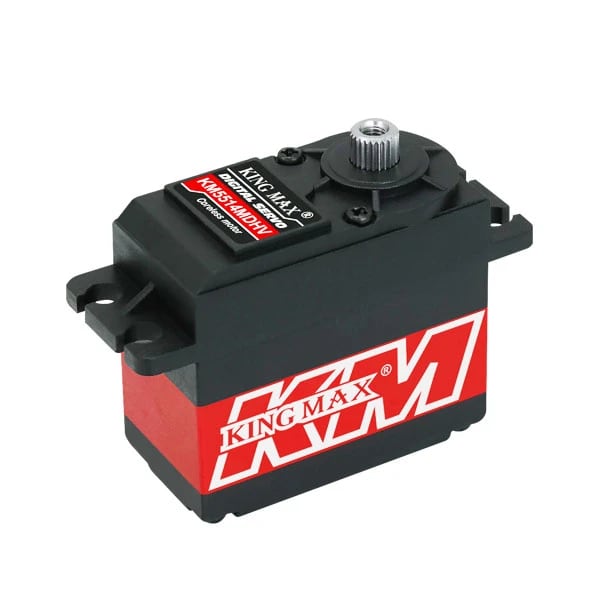

    Kingmax KM5514MDHV 20mm 59g 13kg Digital Metal Gears

    https://rc-innovations.es/web/image/product.template/6689/image_1920?unique=2423b2b
    (0 review)
    SKU:
    N/A

    33.90 € 33.9 EUR 33.90 €

    28.02 €

    0.0% Off

    Not Available For Sale

    Ex. VAT: 28.02

    Days
    :
    Hours
    :
    Mins
    :
    Secs
    • RC Systems
    • Servo Type
    • Servo Type
    • Servo Type

    This combination does not exist.

    Product Image
  • Radios & Receivers ,
  • Servos

    • Kingmax KM5514MDHV 20mm 59g 13kg Digital Metal Gears

    33.90 € 33.90 €
    Add to Cart
    Contact Us
    Brand: Kingmax
    •  True Stock of Products
    Share :
    Guaranteed safe checkout

    -- High performance programmable digital high voltage standard servo

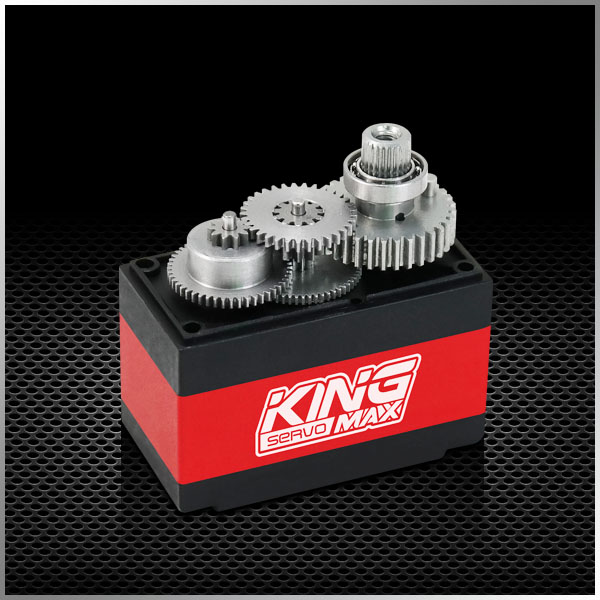

    -- High-precision steel gear

    -- High quality coreless motor

    -- Dual ball bearings

    -- CNC aluminium middle hull

    -- Good for CCPM



    Feature:


    Gear：Steel gear

    Spline：Standard 25T

    Motor：Coreless motor

    Bearing：2BB

    Dead band：2μs default

    Waterproof：No

    Operating Voltage：DC6.0~7.4V

    Working frequency：1520μs/330hz






    Specs:


    Operating Speed (6.0V): 0.11sec/60°

    Operating Speed (7.4V): 0.09sec/60°

    Stall Torque (6.0V): 11.6kg.cm (162.17oz/in)

    Stall Torque (7.4V): 13.2kg.cm (184.54oz/in)

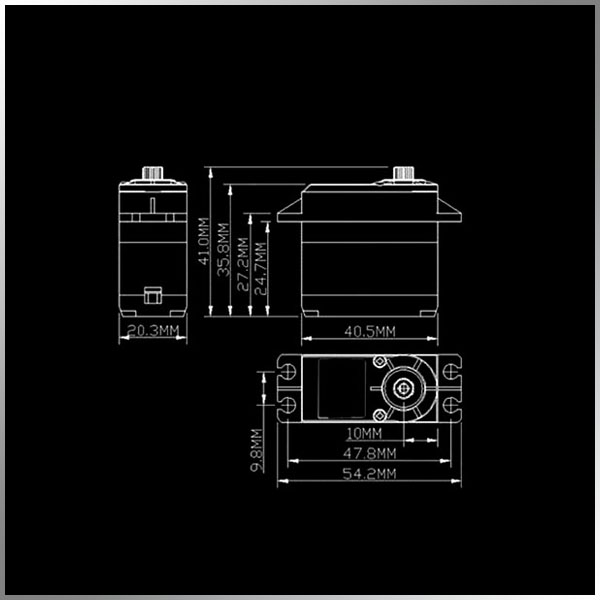

    Dimensions: 40X20X36.5mm /1.59X0.80X1.42in

    Weight:   61 g (2.15oz)

    Connector/ Wire : 22AWG,JR265 mm (10.43in)
