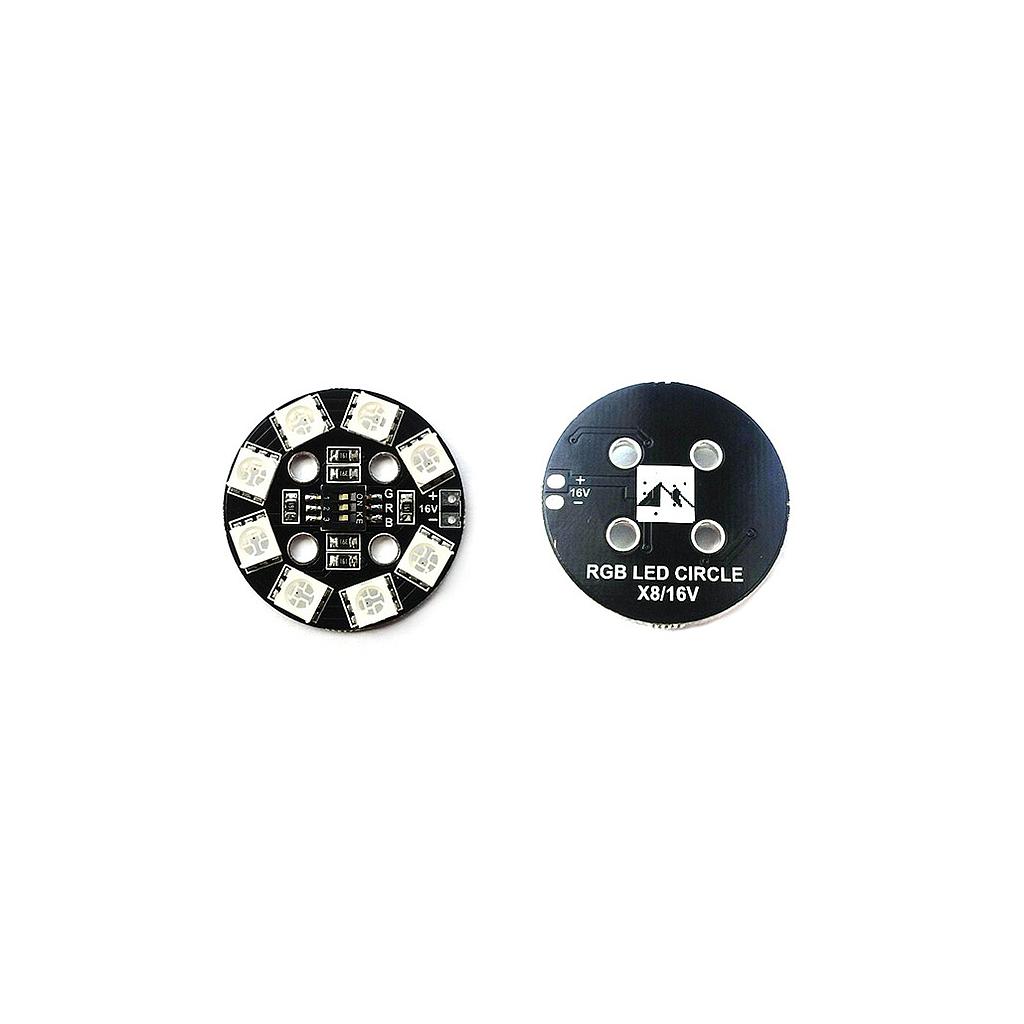

Matek RGB LED CIRCLE X8/16V comes with eight RGB5050 LEDs & one code switch. Seven colors are selectable by means of code switches. This LED board gives an eye-catching effect to your multirotors or planes when illuminated.

Specifications:

INPUT: 14~16V DC， 4S LiPo

Size: Circle  Φ30mm (10mm /Φ3mm Mounting)

Select the colors with 3pin 1.25mm Code switch

Weight: 2.5g

Packing:  LED CIRCLE X8/16V, 1pc,   Cable 0.3m

Notes:

Comes with a 0.3m long cable, users can cut it to a suitable length;

Be ware of the positive and negative poles, as well as the insulation;

Switch the related codes to ON, seven colors are selectable;

The input is in a range of 14~16V DC, can be powered by 4S Lipo.

Selectable Colors & Power @12v:

B ON =Blue, 0.64W, 0.04A

R ON =Red, 0.64W, 0.04A

G ON =Green, 0.64W, 0.04A

B+R =Megenta, 1.28W, 0.08A

B+G =Cyan, 1.28W, 0.08A

R+G =Yellow, 1.28W, 0.08A

B+R+G =White, 1.92W, 0.12A
