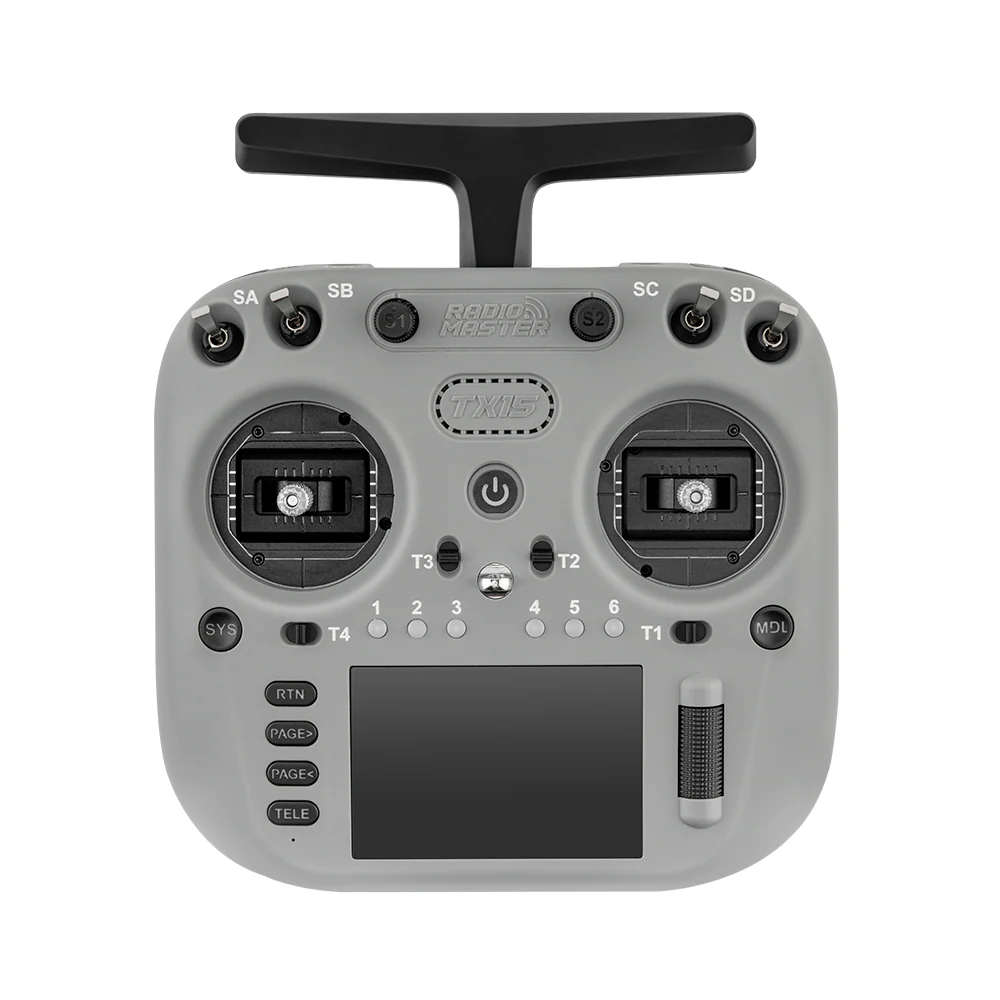

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.

The TX15 features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

Experience clear visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, visible in sunlight. The TX15 Standard features V5.0 hall sensor gimbals in six vibrant colors. It's advanced cooling, a USB-C port for charging, SIM connectivity, firmware updates, and high-speed memory access ensure reliable performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button. Want a premium upgrade? Check out the TX15 MAX.

Features

• Ultra-fast Performance: The STM32 H7 chip drives our fastest radio in history.
• Touch screen: 3.5-inch IPS touch screen, 480 x 320 with vivid colors and sharp details.
• Cecision Gimbals: Gimbals with Hall V5.0 sensor
• Inbuilt-in ExpressLRS: 2.4 GHz / Sub-G 900 MHz ExpressLRS integration for reliable and long-range control.
• Smart Balance battery circuite: maximizes the efficiency and longevity of the battery for longer flight time.
• Powerful and efficient cooling system: low noise level, high-performance fans and an aluminum heat sink keep your radio cool even on the hottest days.
• folding antenna: compact and easy to store without compromising signal strength.
• Burn-in microphone: for future function extensions.
• Built-in turn: activation switches, panoramic/inclined cameras or telemetry calls simply tilting your radius.
• Memory: 4 GB of integrated flash memory and support for external MicroSD card.
• Interchangeable shoulder switches: customize your controls to match your flight style.
• Optional colors: Iron gray / Frost white / Iceberg blue / Mint mist / Lemon yellow / Strong pink

Specs

• Size: 178*168*81mm
• Weight: 605 g (without battery)
• Frequency: 2,400 GHz Or Sub-G 900 MHz
• RF interna: ELRS 2,4 GHz / Sub-G 900 MHz
• Compatible protocols: Express-LRS
• Cooling fan: Yes
• Transmitter module: ELRS built-in
• Built-in flash size: 4 GB
• Built-in microphone: Yes (future expansion)
• Built-in Gyroscope: Yes (ICM-42607-C)
• MicroSD card (not included): 32GB/FAT32 (Inserting a MicroSD card will disable the on-board flash)
• Antenna gain: 2dB (adjustable transmission power)
• Current: 875 mA at maximum output power
• Voltage range: 6.6 - 8.4 V DC
• Radio firmware: EdgeTX (transmitter) (requires version 3.0.0 or later)
• Module firmware: ExpressLRS
• Channels: Maximum 16 channels (depending on the receiver)
• Screen: 3.5-inch IPS touch screen (480 x 320 resolution)
• Battery: 7.4V 2-cell lithium polymer / Two 3.7V 18650 lithium-ion cells / 21700 5000mAh battery (batteries not included)
• Connectivity: USB-C
• Gimbals: with Hall V5.0 sensor (standard)
• Sticks: M4
• Upgrade method: USB-C (UF2)
• Module bay: JR compatible module bay for additional modules
