RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.

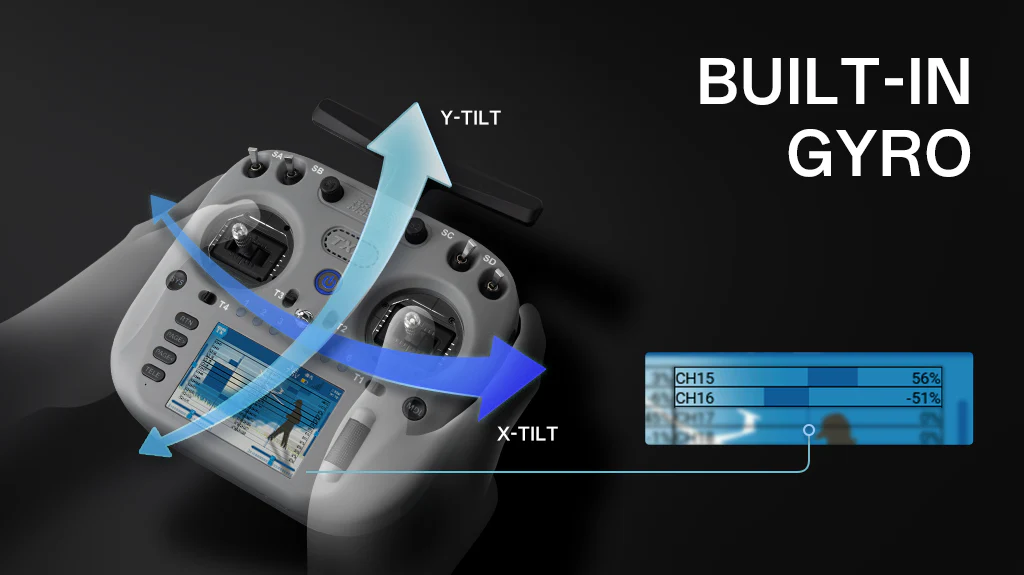

The TX15 features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

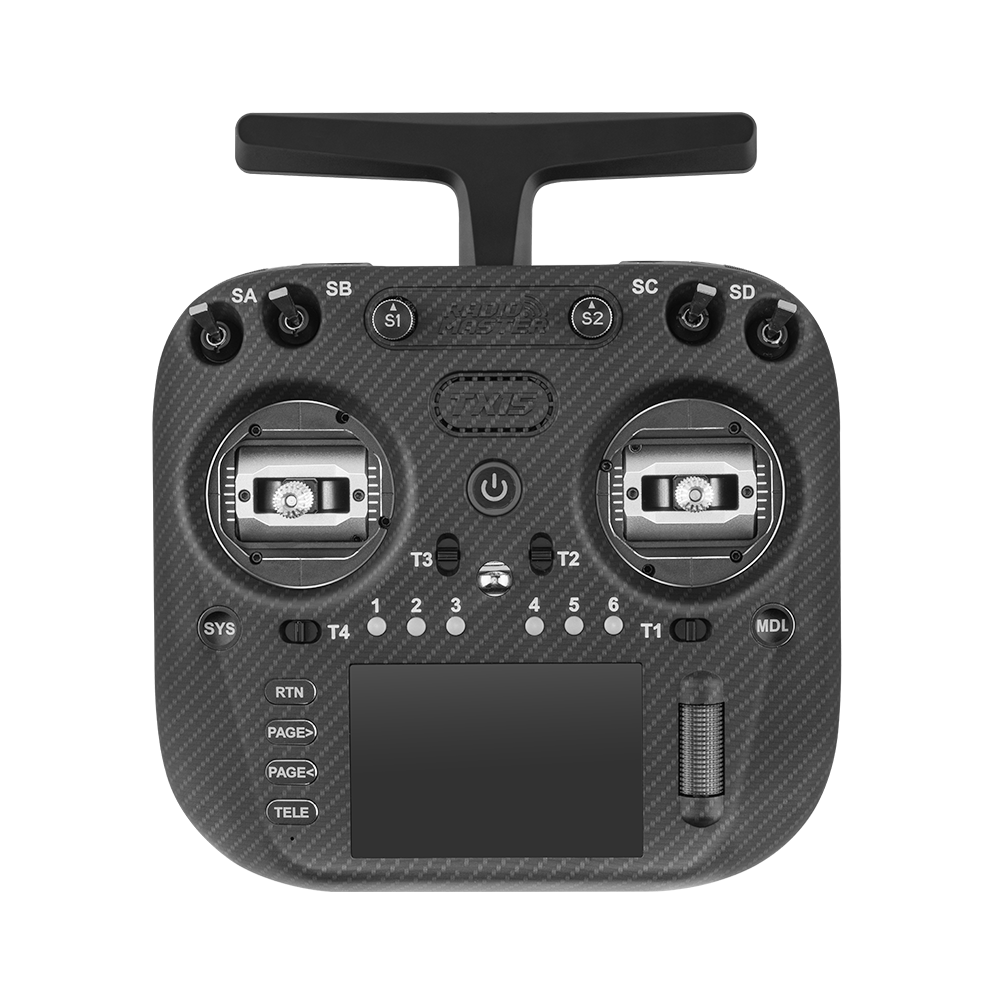

Enjoy sharp visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, even in sunlight. The TX15 MAX boasts AG02 CNC aluminum gimbals in anodized red, black or gold, upgraded aluminum buttons, a scroll wheel, and a carbon-fiber-look case for a premium feel. Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting. It includes advanced cooling, a USB-C charging port, SIM connectivity, firmware updates, and fast memory access for top-tier performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button

Features

• Ultra-fast Performance: The STM32 H7 chip drives our fastest radio in history.
• Touch screen: 3.5-inch IPS touch screen, 480 x 320 with vivid colors and sharp details.
• Precision gimbals: Gimbals AG02 premium
• Inbuilt-in ExpressLRS: 2.4 GHz / Sub-G 900 MHz ExpressLRS integration for reliable and long-range control.
• Smart Balance battery circuite: maximizes the efficiency and longevity of the battery for longer flight time.
• Powerful and efficient cooling system: low noise level, high-performance fans and an aluminum heat sink keep your radio cool even on the hottest days.
• AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both the vertical and horizontal axis.
• Customizable RGB gimbal light ring: the integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
• folding antenna: compact and easy to store without compromising signal strength.
• Burn-in microphone: for future function extensions.
• Built-in turn: activation switches, panoramic/inclined cameras or telemetry calls simply tilting your radius.
• Memory: 4 GB of integrated flash memory and support for external MicroSD card.
• Interchangeable shoulder switches: customize your controls to match your flight style.
• Optional colors: Iron gray / Frost white / Iceberg blue / Mint mist / Lemon yellow / Strong pink

Specs

• Size: 178*168*81mm
• Weight: 672 g (without battery)
• Frequency: 2,400 GHz Or Sub-G 900 MHz
• RF interna: ELRS 2,4 GHz / Sub-G 900 MHz
• Compatible protocols: Express-LRS
• Cooling fan: Yes
• Transmitter module: ELRS built-in
• Built-in flash size: 4 GB
• Built-in microphone: Yes (future expansion)
• Built-in Gyroscope: Yes (ICM-42607-C)
• MicroSD card (not included): 32GB/FAT32 (Inserting a MicroSD card will disable the on-board flash)
• Antenna gain: 2dB (adjustable transmission power)
• Current: 875 mA at maximum output power
• Voltage range: 6.6 - 8.4 V DC
• Radio firmware: EdgeTX (transmitter) (requires version 3.0.0 or later)
• Module firmware: ExpressLRS
• Channels: Maximum 16 channels (depending on the receiver)
• Screen: 3.5-inch IPS touch screen (480 x 320 resolution)
• Battery: 7.4V 2-cell lithium polymer / Two 3.7V 18650 lithium-ion cells / 21700 5000mAh battery (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Sticks: M4
• Upgrade method: USB-C (UF2)
• Module bay: JR compatible module bay for additional modules
