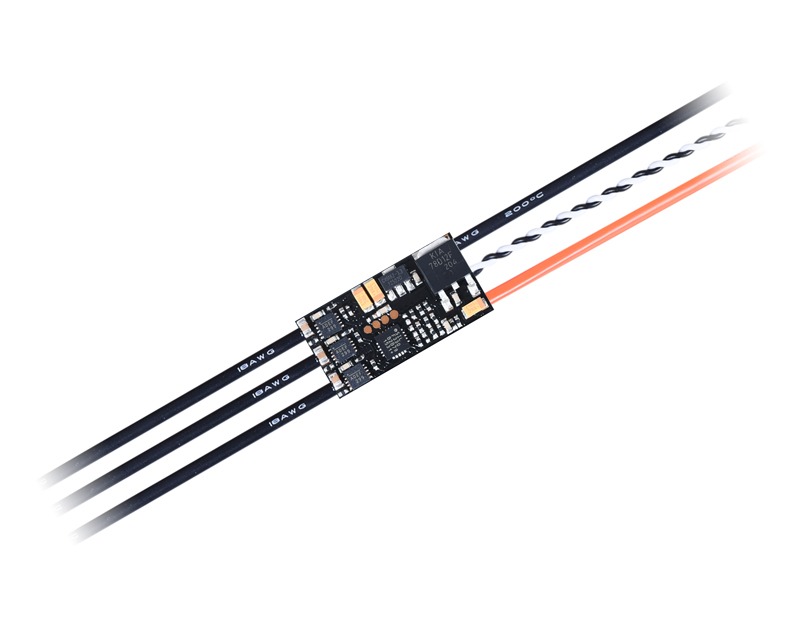

Equipped with the Silab F390 chipset which runs at twice the speed of Silab F330 chipsets , lighter, more efficient and producing more than 50 grams over competitor ESC's this is the obvious choice for those wanting high performance at an affordable price.
Flashed with BLHeli bootloader and BLHeli, connecting, updating and changing settings is a breeze through one-wire technology through most new generation cleanflight flight controllers including Naze32 (Acro/Full).
Features:
- MCU: Silabs F390, running at 50MHz, twice the speed of F330
- Dedicated FET driver: ADEF313 Monolythic power system, same as Little Bee 30A
- N-channel MOSFET: IOR International Rectifier H8318 100A rated Voltage Regulator:
- Low noise dual-step Linear voltage regulator
- Extremely low internal resistance
- Super smooth and accurate throttle linearity
- Safety thermal over-load protection
- Auto throttle shut down in signal lose situation
- Supports high and low RPM motors
| Size (L*W*H) mm | 26x14x5.5mm |
| Constant current (A) | 20 |
| Brush Current (A) | 30 (10s) |
| Max. Power | 400W |
| BEC Type | No BEC |
| Battery | 5-12NC\2-4Lipo |
| Weight (g) | 8 g (With Wires) |
