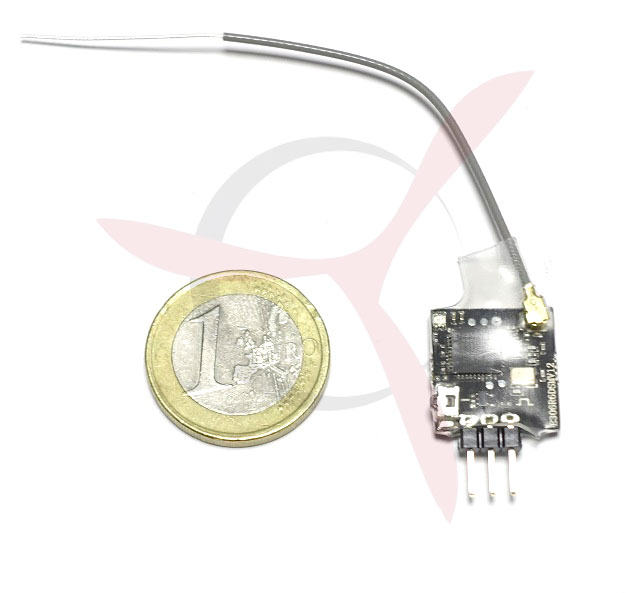

R6D, 2.4G 6 channel receiver, DSSS and FHSS used for the item Radiolink AT9, AT9S  and AT10.

FEATURE:

1. DSSS and FHSS technique, super anti-interference

2. PPM output

3. S.BUS output

4. All 6 channel needs 3ms to response parallel

5. Section precision 4096, stable the servo, rudder shaking free.

6. Max 6V

7. MINI design for convenient assembling and operating

8. Control distance: 600 meters of air.

9. Consumption: 38-45ma (6V)

10. Weight: 3.4 g

11. Dimesion: 25 x 15 mm

Two signal working mode:

Blue/purple LED, SBUS signal , 10 channels totally.

Red LED always, PPM signal, 10 channels totally.

SBUS and PPM signal change:

Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM. The red LED indicates the PPM and blue/purple indicates SBUS.

How to match code with transmitter:

1. Place the transmitter and the receiver close to each other within 1 meters.

2. Turn on the transmitter, then power on the R6DSM.

3. Connect CH3 of R6DSM to ESC.

4. There is a black button on the R6DSM, press the binding button twice in two seconds and release, receiver light start blinking, after about 8 times blinking, match code success when receiver signal LED always on!
