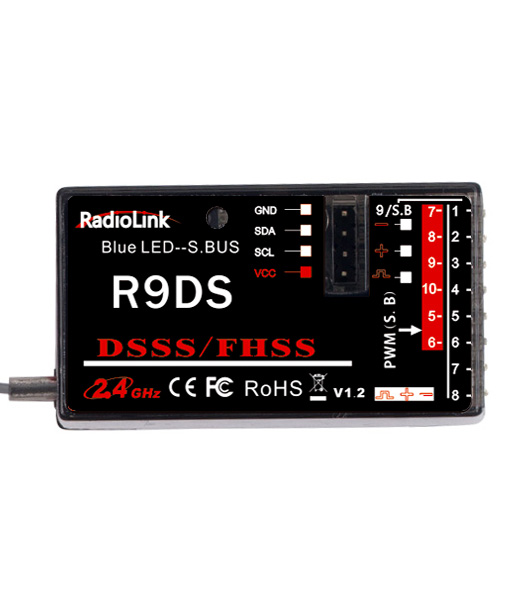

R9D, 2.4G 10 channel receiver, DSSS and FHSS used for the item Radiolink AT9, AT9S  and AT10.

FEATURE:

1. DSSS and FHSS technique, super anti-interference

2. RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc.

3. S.BUS. CH9 is set for S.BUS

4. All 10 channel needs 3ms to response parallel

5. Section precision 4096, stable the servo, rudder shaking free.

6. HV input up to 10V

7. MINI design for convenient assembling and operating

Technical Parameters

Two signal working mode:

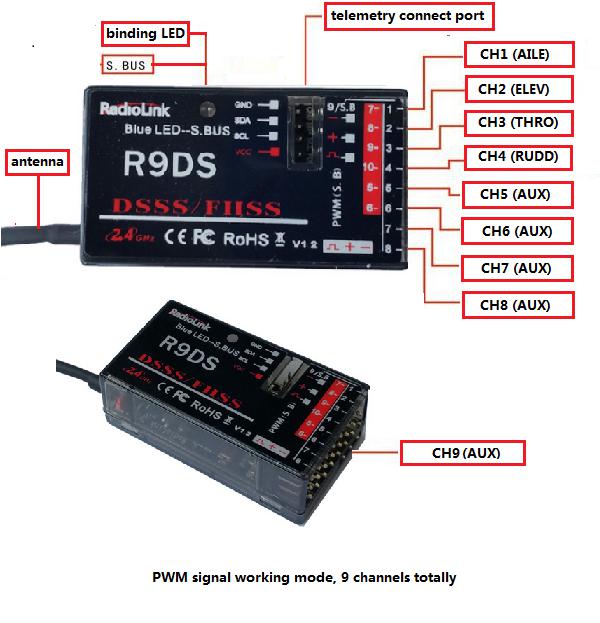

(1)PWM signal output working mode：red LED indicates PWM signal output, 9 channels Totally.

(2) SBUS signal output working mode: blue/purple LED indicates SBUS signal output, 10 channels totally. SBUS and PWM signal possible working at the same time with SBUS signal output working mode. CH9 output SBUS signal, the original CH1 to CH4 output CH7 to CH10 PWM signal at the same time.
