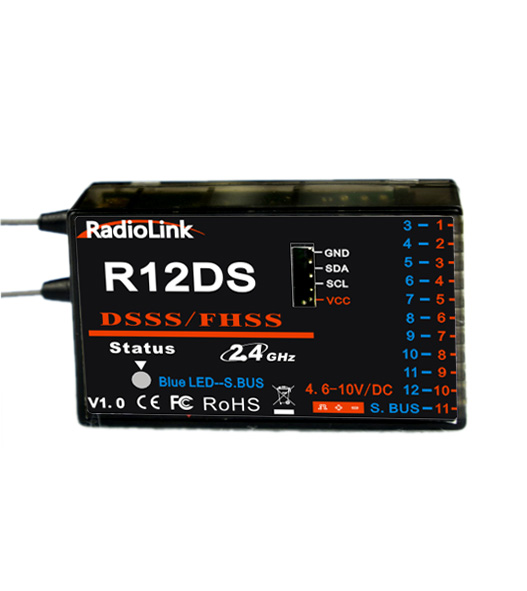

R12DS, 2.4G 12 channel receiver, DSSS and FHSS used for the item Radiolink AT9, AT9S, AT10, AT10II.

SBUS and PWM signal possible working at the same time.

FEATURE:

1. DSSS & FHSS technique, super anti-interference

2. RX voltage and signal strength telemetry, extensional sensor for EP, Temperature, RPM, GPS etc.

3. Sbus 12CH Output

4. All 12channel needs 3ms to response parallel

5. Section precision 4096, stable the servo, rudder shaking free.

6. HV input up to 10V

Two signal working mode:

(1)PWM signal output working mode：red LED indicates PWM signal output, 11 channels Totally.
(2) S-BUS signal output working mode: blue/purple LED indicates S-BUS signal output, 12 channels totally.

S-BUS and PWM signal working at the same time. S-BUS signal channel(3 pin of row 11) output 12 channels S-BUS signal, PWM signal channels(3 pin of row 1 to row 10) output CH3 to CH12 PWM signals, but 12 channel in total. How many PWM signal channels you can use depends on how many S-BUS signal channels you have used(e.g: you have use 4 S-BUS signal channels, then you have 8 PWM signal channels to use).
