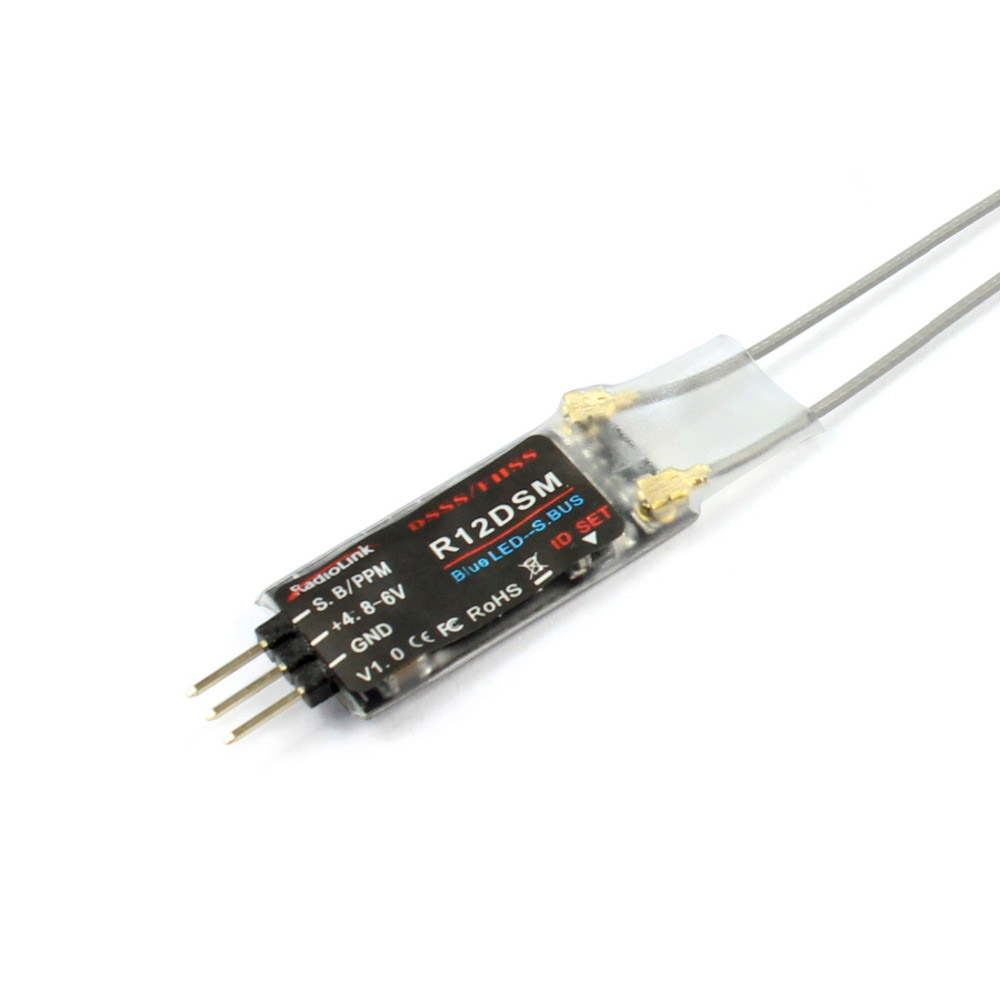

The Radiolink R12DSM receiver has only 2.5 grams of weight. The output can be SBUS and PPM, it works on both DSSS and FHSS systems. It is compatible with Radiolink AT9, AT9S, AT10 and AT10II transmitters.
Features:
- Only 2.5 gram of weight.
- Radiolink R12DSM, 2.4G 12CH receiver.
- DSSS and FHSS spread spectrum working synchronousl.
- SBUS and PPM signal support, use for Radiolink transmitters AT9,AT9S,AT10 and AT10II
Two signal working mode:
Blue/purple LED, SBUS signal, 12 channels totally.
Red LED always, PPM signal, 12 channels totally.
SBUS and PPM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM. The red LED indicates the PPM and blue/purple indicates SBUS.
How to bind with transmitter:
1. Place the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R12DSM.
3. There is a black button on the R12DSM, press the binding button twice in two seconds and release, receiver light start blinking, after about 8 times blinking, match code success when receiver signal LED always on!
