-- High performance, digital standard servo

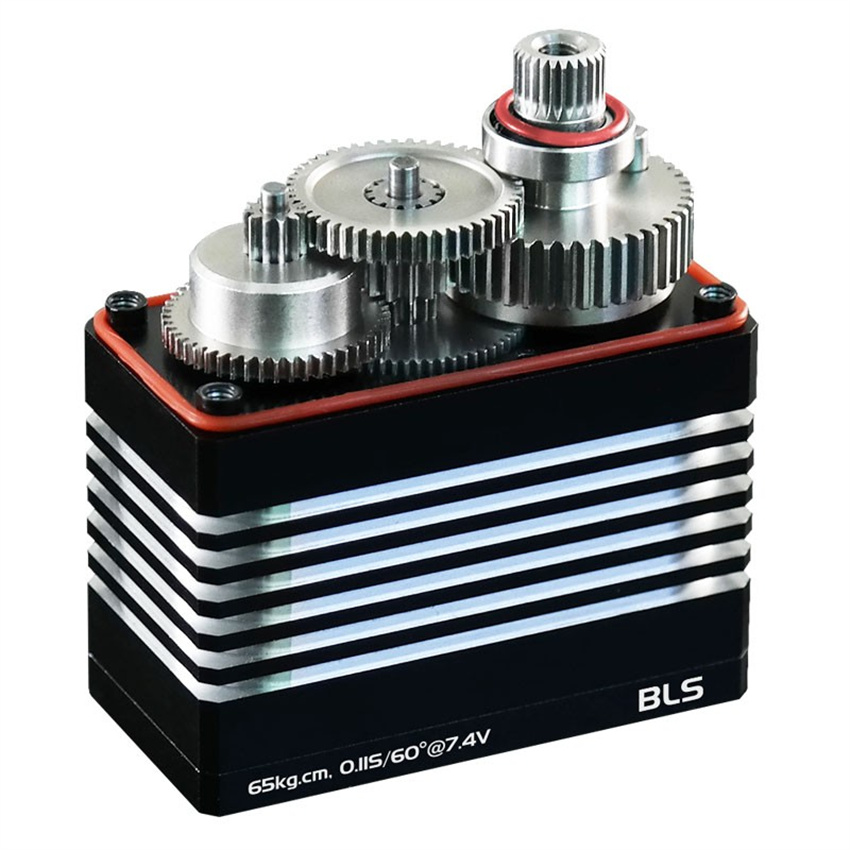

-- High-precision steel gears
-- Full CNC aluminium hulls and structure
-- High quality brushless motor
-- Dual ball bearings
-- Super long life
-- Waterproof
Feature:
Gear：Steel gear
Spline：Standard 25T
Motor：Brushless motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequency：1520μs/330hz
Working angle：±63°@800us-2200us
Working temperature：-10℃~+50℃
Specs:
Operating Speed(5.0V):0.16sec/60degrees
Operating Speed(6.0V):0.14sec/60degrees
Operating Speed(7.4V):0.11sec/60degrees
Operating Speed(8.4V):0.10sec/60degrees
Stall torque(7.4V):65kg.cm(902.85oz/in)
Maximum working torque(7.4V):43kg.cm
Rated working torque(5.0V):22.0kg.cm
Rated working torque(6.0V):26.0kg.cm
Rated working torque(7.4V):32.0kg.cm
Rated working torque(8.4V):35.0kg.cm

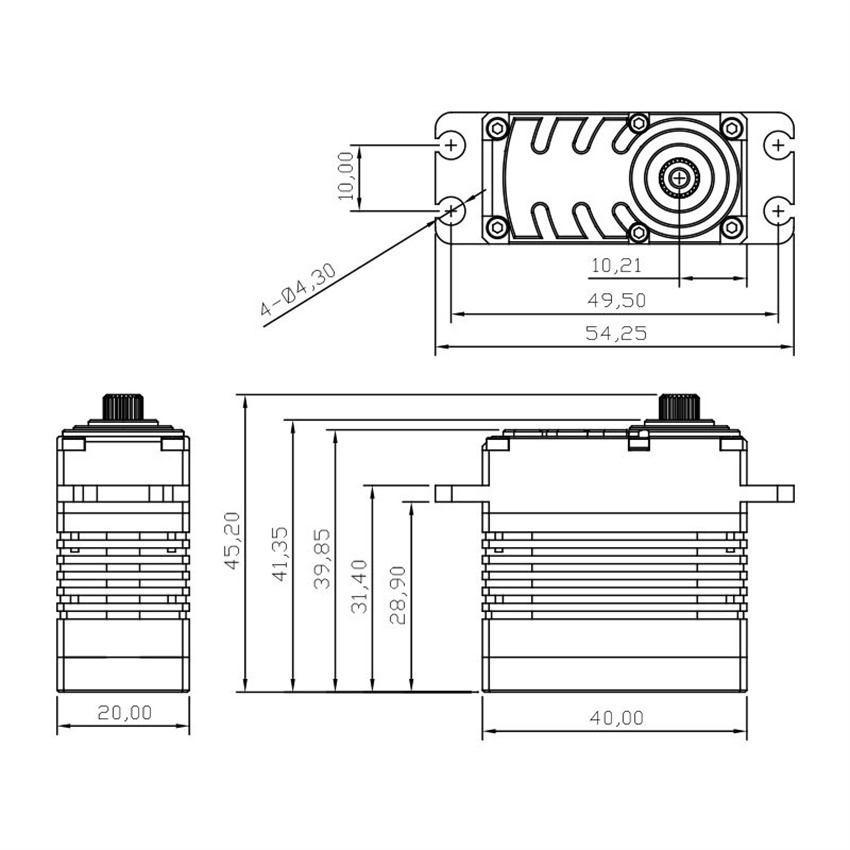

Dimensions(L*W*H):40*20*39.8mm
Weight:89g
Connector Wire Length:JR300mm
