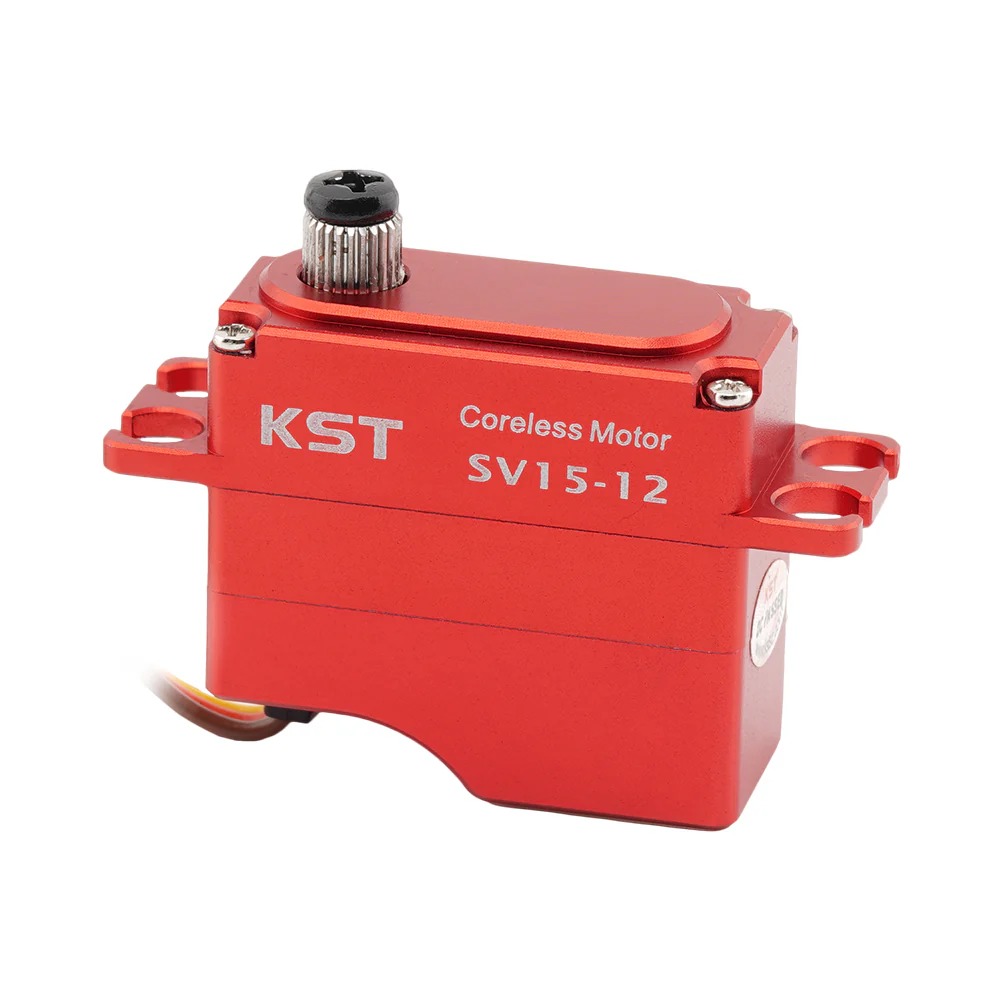

The SV15-12 digital servo is a high-performance, programmable coreless servo designed for RC Helicopters, Robotics and Industrial UAVs. Featuring a hardened steel gear, CNC aluminium alloy case, and dual ball bearings, it ensures exceptional durability, precision, and smooth operation. With a wide voltage range (8.4V-13.0V), it delivers up to 20.0 kgf.cm of torque at 13V and boasts a high-speed response of 0.10sec/60°.

Ideal for high-torque and fast-response applications, the SV15-12 servo is the perfect choice for RC enthusiasts and professionals seeking superior servo performance.

Features:

SHV (Super High Voltage) DC 12V or Up to 3S LiPo Direct Drive

Supports 8.4-13.0V

High Torque & Exceptional Speed

Programmable

Large Default Travel Angle (programmable)

High Performance Coreless DC Motor

Hardened Steel Gear

Ideal RC Gliders and Industrial UAVs

Specs:

Item: SV15-12 Servo

Rated Voltage: DC12.0V

Voltage Range: DC8.4V-13V

Torque: 15.0Kgf.cm@8.4V / 18.0Kgf.cm@12.0V / 20.0Kgf.cm@13.0V

Speed: 0.15sec/60°@8.4V / 0.11sec/60°@12.0V / 0.10sec/60°@13.0V

Working Frequency: 1520μs/333Hz

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃.......+65℃

Soft Start: Programmable

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 33*15*30mm±0.2mm

Weight: 35g±10%
