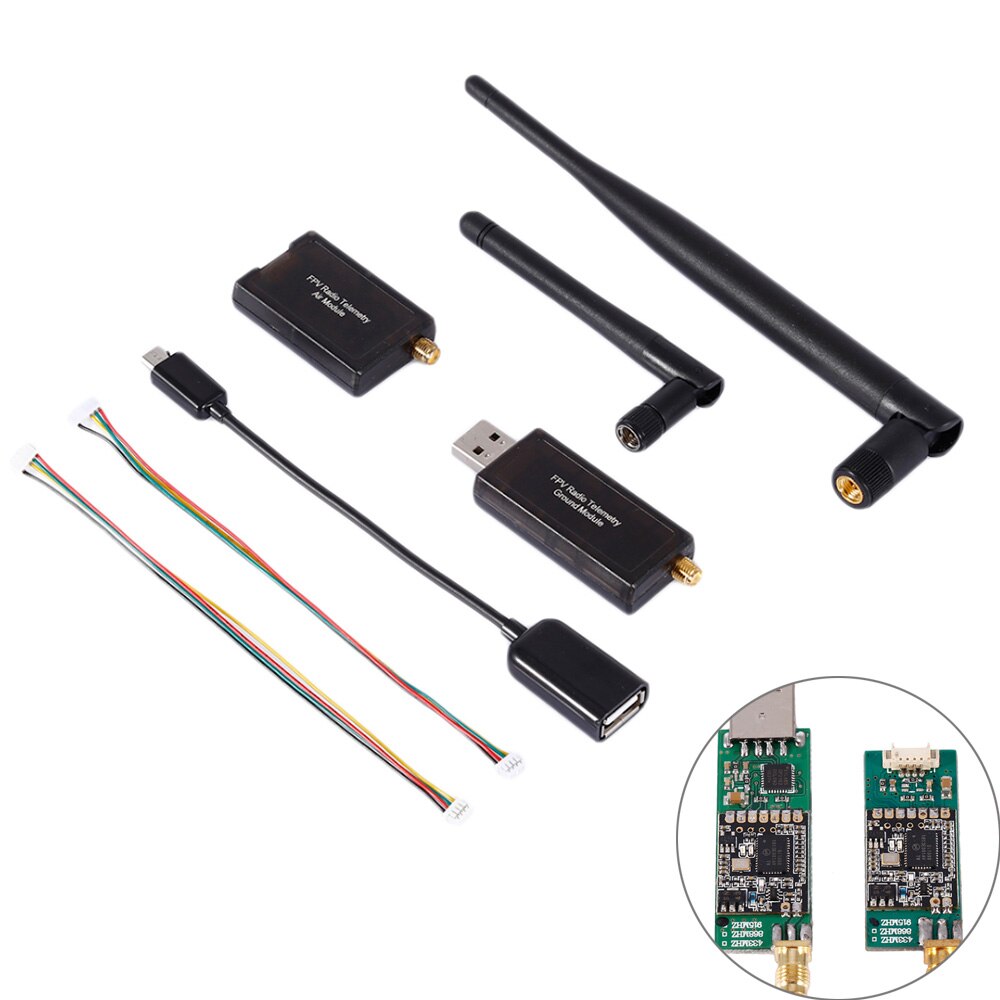

The Radio telemetry system base on 3DR Radio system and 100% compatible.

It has 6 positions conectro Molex 2 way full-duplex communication through adaptive TDM.

The firmware is open source. The connection to the module is through OTG.

Firmware upgrades and configuration support Arduplanner. The configuration is also possible via the configurator 3DR Radio and AT commands.

◆ Features

• Small size and light weight

• Frequency: 433Mhz

• Receiver sensitivity -121 dBm

• Power transmission of up to 27dBm (500mW)

• Link serial port

• Data rates up to 250 kbps Air

• Framing MAVLink protocol and status reporting

• System Automatic frequency hopping (FHSS)

• adaptive division multiplexing time (TDM)

• Scope 1.5km max

• Configurable operating mode

• Built with error correction code (you can correct up to 25% bit error data)

• Demonstrated range of several kilometers with a small omni

• Can be used with a bidirectional amplifier for even more variety

• Firmware open source

• Connector: SMA antenna

• Based on the radio module HM-TRP HopeRF with a microcontroller SiLabs SI1000 RF.
