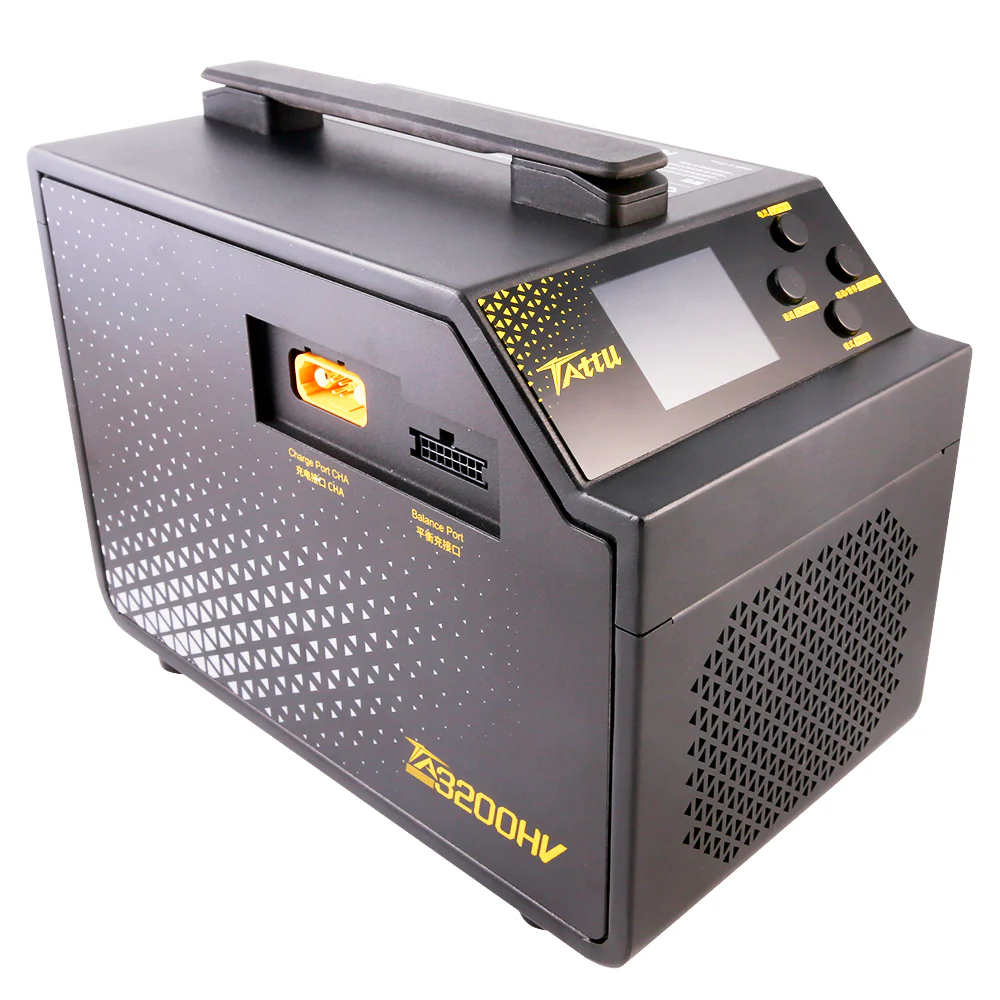

The all new TA3200HV is Tattu’s latest member in its premium intelligent Smart charger line; able to charge safely and conveniently Tattu/GensAce Smart batteries like our TATTU Plus 1.0 16000mAh Compact Smart Battery; as well any other soft pack models ranging from 6S to 14S.

The TA3200HV charger features 2 powerful charge channels with its maximum power reaching up to 3200W/60A and recognizes batteries equipped with the DroneCAN protocol standard; therefore keeping primarily safety as well smooth and simple operation as priority.

Additionally; 3 performance optimized charge modes can be activated: fast charging mode; normal charging mode and storage mode for standard LiPo style batteries as well HV battery technology. In normal soft pack operation charge mode; there are three charging current choices 6A; 16A and 32A with 220V input or 10A;16A; 22A with 110V input.

SPECS

​

Max Output Power: AC100-110V 1200W; 220-240 3200W

- Discharge power: MAX 70W*2

- AC 110 V Input: Max 40A

- AC 220 V Input: Max 60A

- Corriente de entrada: CA<15A

- Battery type: LiHv / Batería inte

- Cells: 6-14S Alto voltaje

- Channels: 2 canales

- Tolerancia de equilibrio: ±20mV

- Screen: IPS de 2,4 pulgadas

- Temperature: 0~65 ℃

- Storage Temperature: -20~60 ℃

- Voltage fast charger: LiHv: 4,35 V

- Protección de entrada: Protección contra sobrecorriente

- Protección de salida: sobre voltaje / bajo voltaje / cortocircuito / sobre temperatura / polaridad inversa

- Sistema de refrigeración: aire de refrigeración

- Puerto de actualización externo: puerto USB

- Size: 276×154×216mm

- Weight: 6 kg
