Specifications:

KV...................................................................................400

Configu ration..............................................................18N24P

Stator Diameter..............................................................40mm

Stator Length...................................................................4mm

Shaft Diameter..................................................................4mm

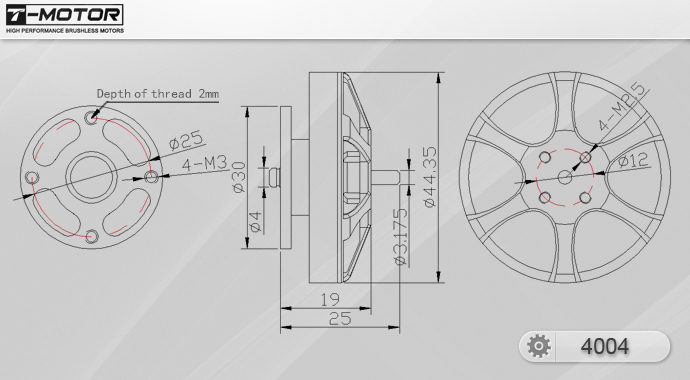

Motor Dimensions(Dia.*Len)................................Φ44.35×19mm

Weight (g)..........................................................................52g

ldle current(10)@10v(A)......................................................0.2A

No.of Cells(Lipo)................................................................4-6S

Max Continuous current(A)180S...........................................12A

Max Continuous Power(W)180S........................................300W

Max. efficiency current..............................................(2-6A)>91%

internal resistance..........................................................359mΩ
