    Terabee TeraRanger 64px ToF 8x8px 5m USB

    https://rc-innovations.es/web/image/product.template/6780/image_1920?unique=d371824
    (0 review)

    141.57 € 141.57 EUR 141.57 €

    117.00 €

    0% Off

    Not Available For Sale

    Ex. VAT: 117.00

    Days
    :
    Hours
    :
    Mins
    :
    Secs
    • Accesorios

    This combination does not exist.

    Product Image
  • Autopilots & stabilizers ,
  • Flight controllers

    • Terabee TeraRanger 64px ToF 8x8px 5m USB

    141.57 € 141.57 €
    Add to Cart
    Contact Us
    SKU:
    N/A
    Brand: Terabee
    Share :

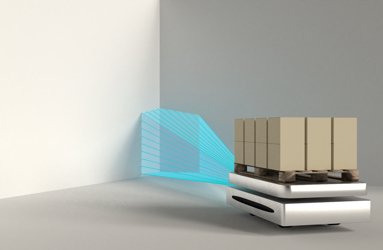

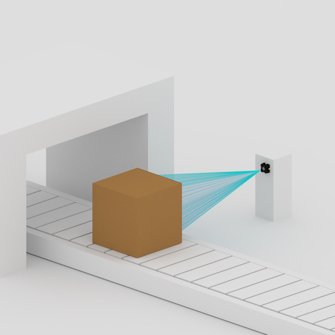

    Monitor movement, track motion, sense depth, count people or items and more!


    Developed for indoor use, Evo 64px outputs a matrix of 8x8 high-speed distance readings over a 15 degree Field of View, with a maximum range of up to 5 meters. All in a small and lightweight form-factor, only 12 grams. A free graphical user interface is available for quick tests on your PC, and drivers for ROS are also written adding to the plug and play convenience.


    Key product features


    • Infrared Time-of-Flight technology

    • 64 pixel depth image for movement detection

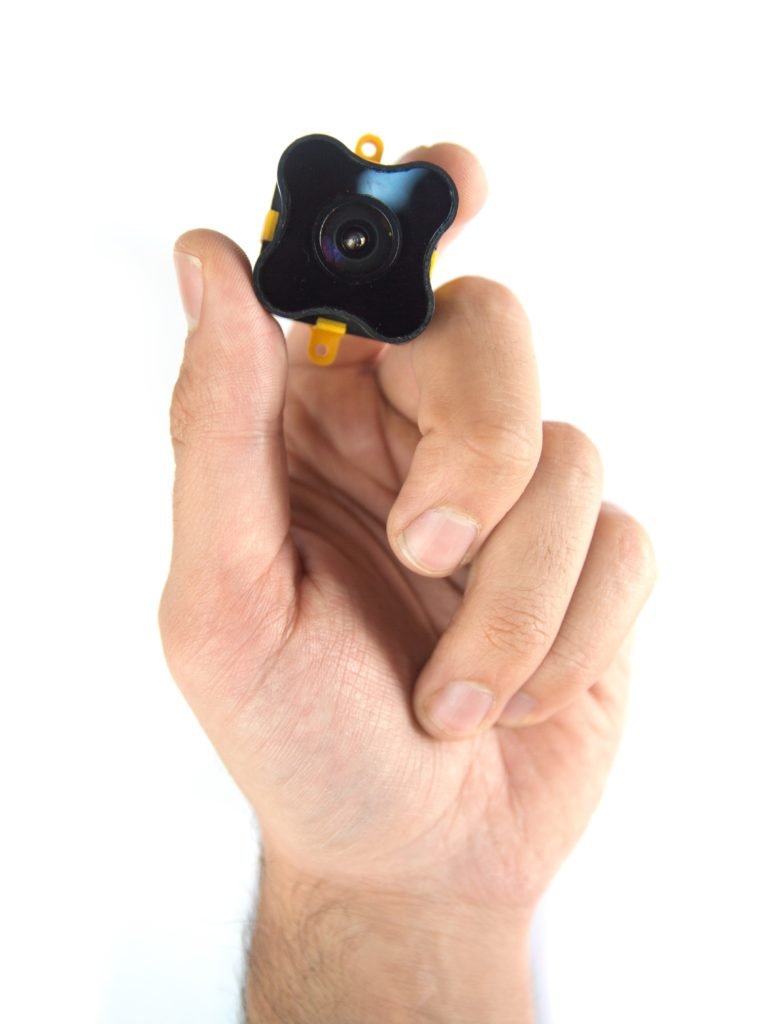

    • Compact and lightweight design - from 12 grams

    • Close range - start measuring from just 10 centimeters

    • USB / UART (clip on, interchangeable) interfaces

    • ROS ready

    • Operates in low light and complete darkness



    UNIQUE MODULAR DESIGN

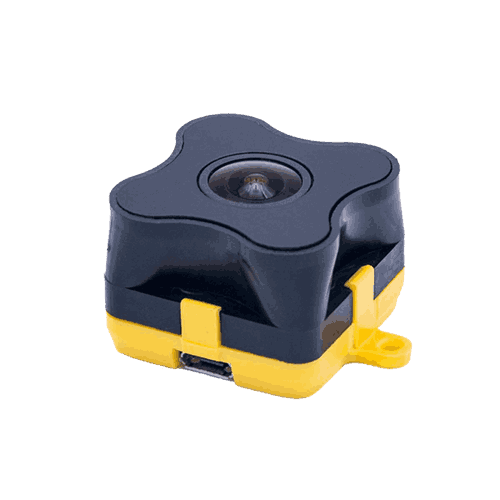

    TeraRanger Evo sensors consist of an opto-electronic sensing device (black module) and a choice of backboard (yellow model), which simply plugs-in to provide the sensor with its communication link and power management capabilities without the need for adapters or complex wiring. You simply choose the backboard that best suits your application and communication protocol! Both USB and I2C / UART backboards are available.


    For first time users, we recommend the USB backboard as it allows quick tests on PC with our graphical user interface. This setup is also required for possible firmware updates in future.


    Other backboards with industry standard interfaces and protocols can also be made to support your application. Contact Terabee at teraranger@terabee.com to discuss your project requirements.


    VERSATILE PERFORMANCE


    Choose between 2 operating modes. Go “Fast” and detect fast-moving objects with sampling rates as high as 130 frames per second. Select “Close-range” for improved minimum range, with measurements starting from just 10 centimeters.


    BUILD ANDROID APPLICATIONS WITH OUR TECHNOLOGY!


    Our Android SDK provides an easy way to communicate with Terabee sensors on an Android device. The SDK supports the following sensor models via a USB interface:


    TeraRanger Evo 3M

    TeraRanger Evo 60M

    TeraRanger Evo 64px

    TeraRanger Multiflex


    The SDK can auto-detect which type of sensor is connected to a device.


    To connect the sensor to an Android device, you will need a USB OTG cable and a USB backboard for each sensor.
