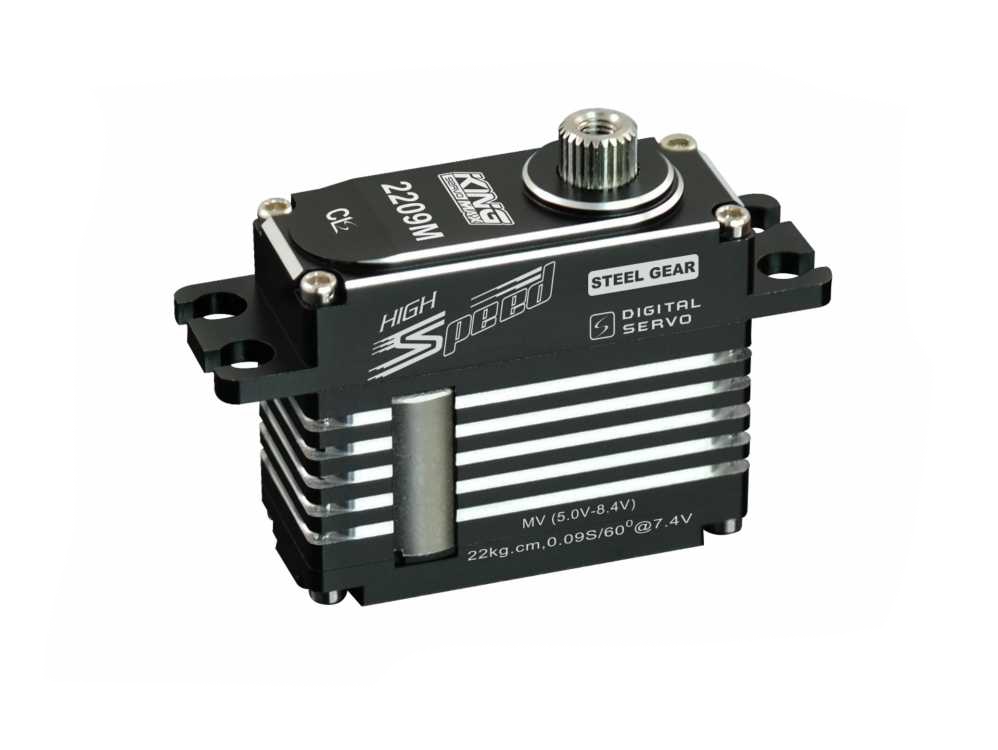

    Kingmax CLS2209 15mm 43g 22kg Digital Metal

    58.90 € 58.90 €
    SKU:
    N/A
    Brand: Kingmax

    Share :

    -- High performance digital mini servo

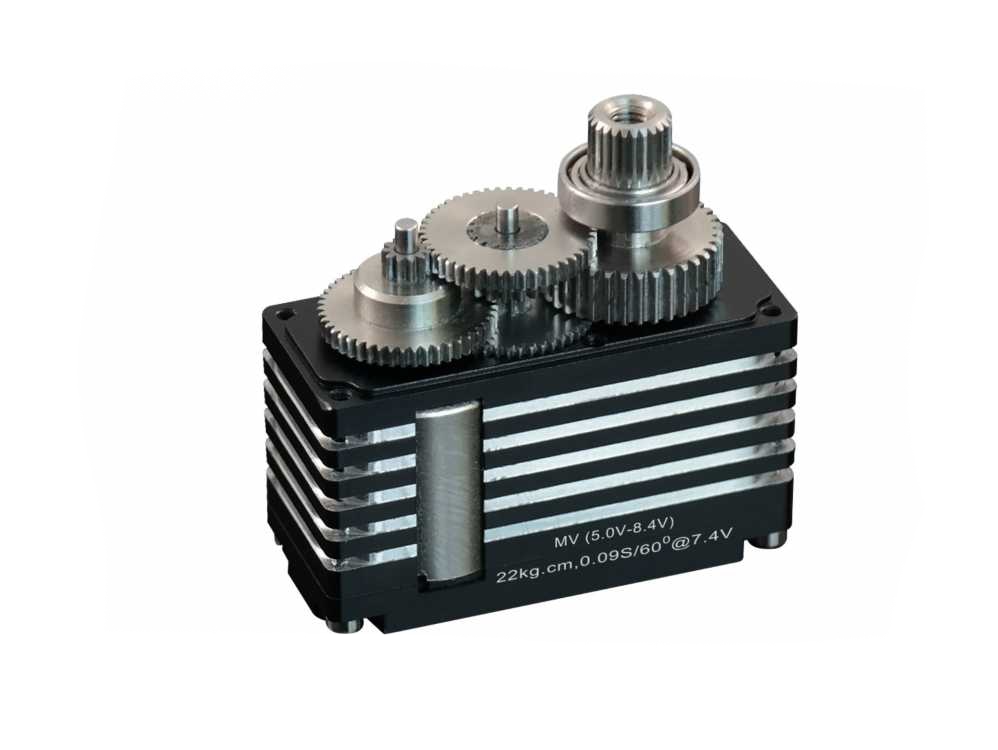

    -- High-precision steel gear

    -- High quality coreless motor

    -- Full CNC aluminium hulls and structure

    -- Dual ball bearings

    -- Super long life



    Feature:


    Gear:Steel gear

    Spline:Standard 25T

    Motor:Coreless motor

    Bearing:2BB

    Dead band:2μs default

    Waterproof:No

    Operating Voltage:DC5.0~8.4V

    Rated working voltage:DC 7.4V

    Working frequency:1520μs/330hz

    Working angle:±63°@800us-2200us

    Working temperature:-10℃~+50℃



    Specs:


    Operating Speed(5.0V):0.14sec/60degrees

    Operating Speed(6.0V):0.11sec/60degrees

    Operating Speed(7.4V):0.09sec/60degrees

    Operating Speed(8.4V):0.08sec/60degrees

    Stall Torque(7.4V):22kg.cm(305.58oz/in)

    Maximum working torque(7.4V):12.0kg.cm(166.68oz/in)

    Rated working torque(5.0V):5.00kg.cm(69.45oz/in)

    Rated working torque(6.0V):6.00kg.cm(83.34oz/in)

    Rated working torque(7.4V):7.00kg.cm(97.23oz/in)

    Rated working torque(8.4V):7.50kg.cm(104.17oz/in)

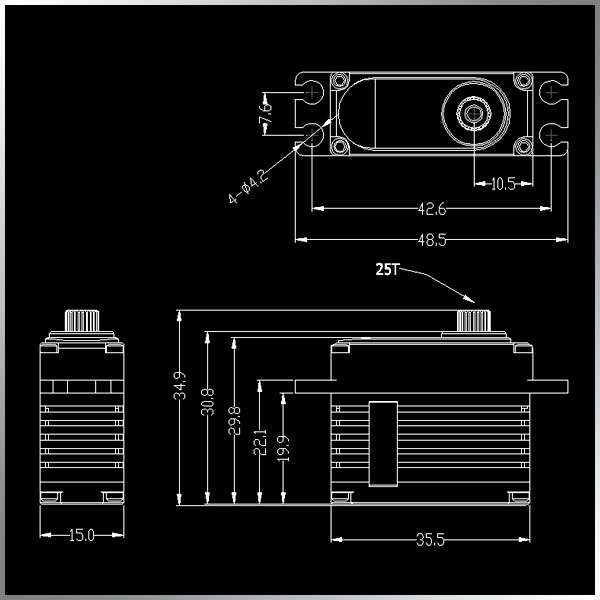

    Dimensions:35.5*15*29.7mm/1.38*0.58*1.15in

    Weight:43g(1.51oz)

    Connector Wire Length:JR250mm
