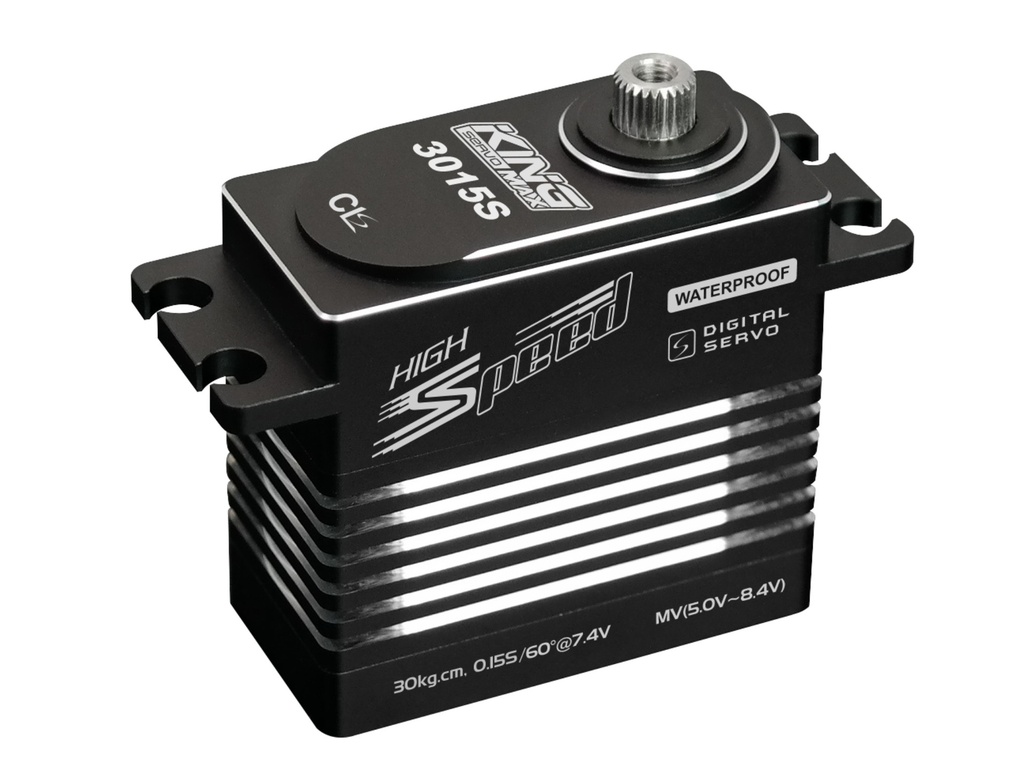

High performance, standard,Multivoltage digital servo

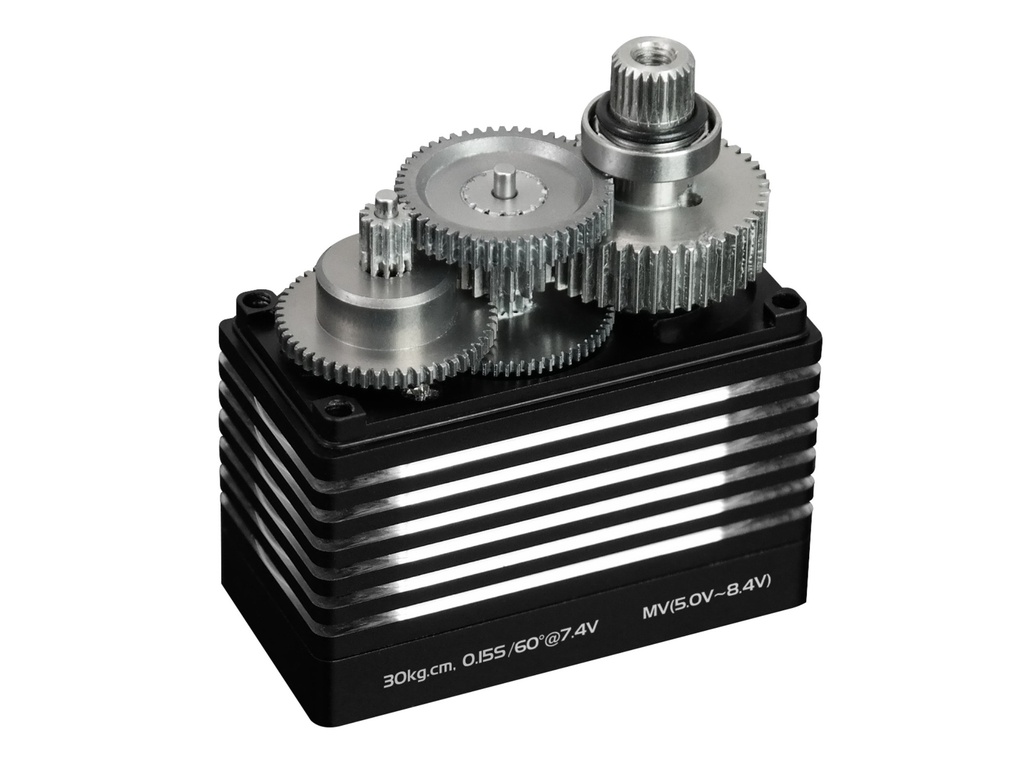

-High-precision steel gear
-Long-life potentiometer
-Full CNC aluminium case
-High quality coreless motor
-Dual ball bearing
-Waterproof
-Suit for 50-150CC gas engine, 1/5 car
Feature:
Gear：Steel gear
Spline：Standard 25T
Motor：Coreless motor
Bearing：2BB
Dead band：2μs default
Waterproof：Yes
Operating Voltage：DC5.0~8.4V
Rated working voltage：DC 7.4V
Working frequency：1520μs/330hz
Working angle：±58°@900us-2100us
Working temperature：-10℃~+50℃
Specs:
Operating Speed (5.0V): 0.20sec/60 degrees
Operating Speed (6.0V): 0.18sec/60 degrees
Operating Speed (7.4V): 0.15sec/60 degrees
Operating Speed (8.4V): 0.13sec/60 degrees
Stall Torque (5.0V): 25.7kg.cm (356.97oz/in)
Stall Torque (6.0V): 27.8kg.cm (386.14oz/in)
Stall Torque (7.4V): 30kg.cm (416.7oz/in)
Stall Torque (8.4V): 35kg.cm (486.15oz/in)

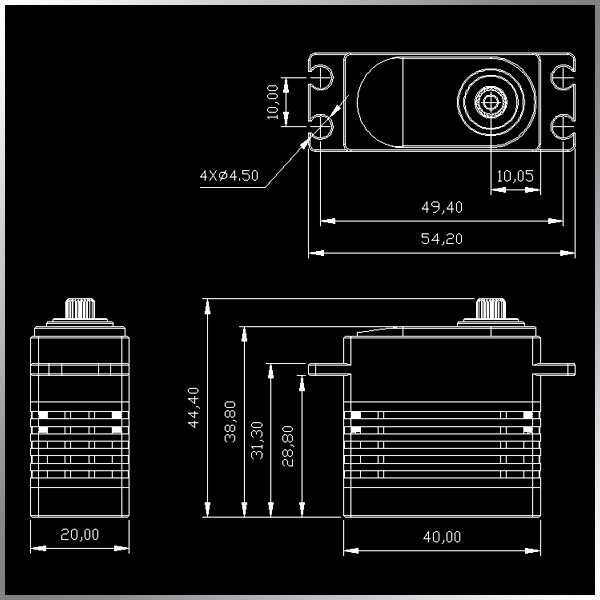

Dimensions: 40X20X40.9mm /1.56X0.78X1.6in
Weight:80g (2.82oz)
Connector Wire Length:300mm (11.8in)
