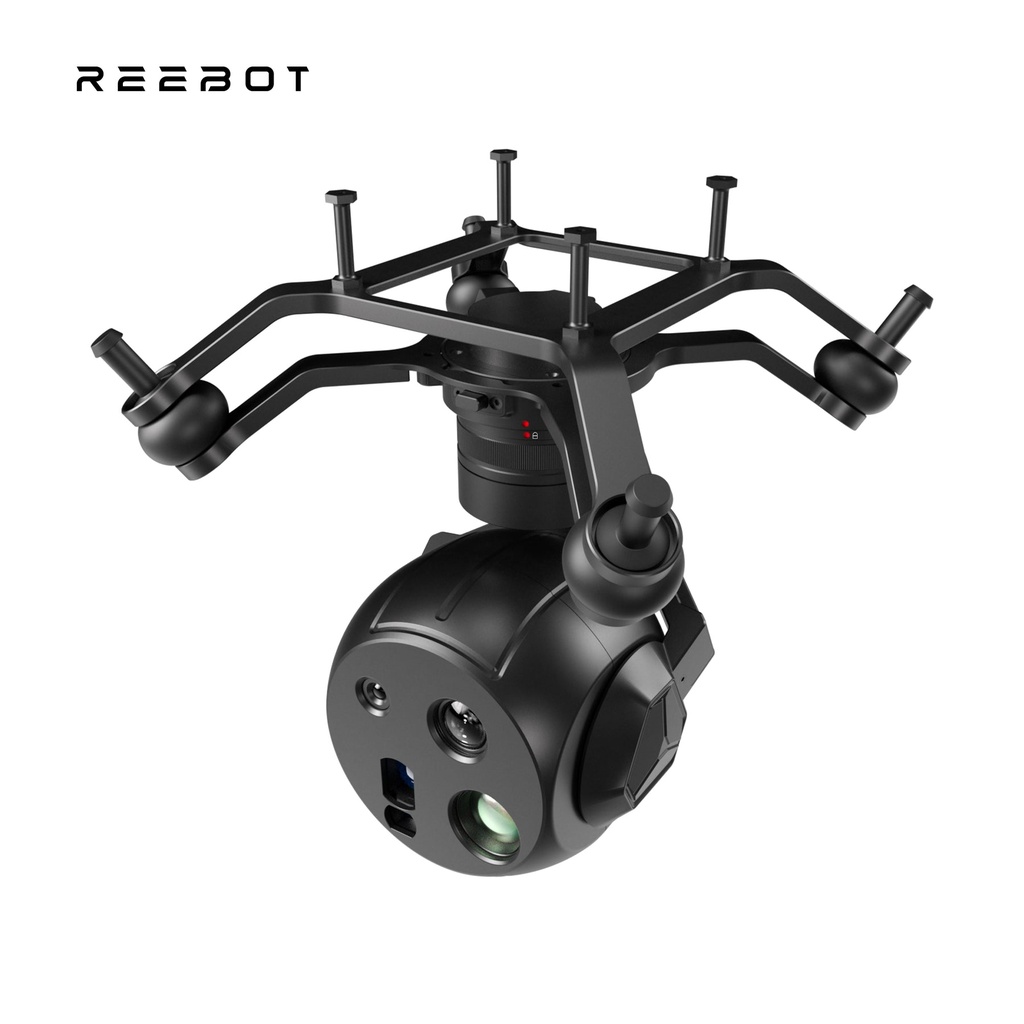

Siyi Reebot UniPod MT11 Mini Four-Sensor Optical AI Pod EO/IR/LRF

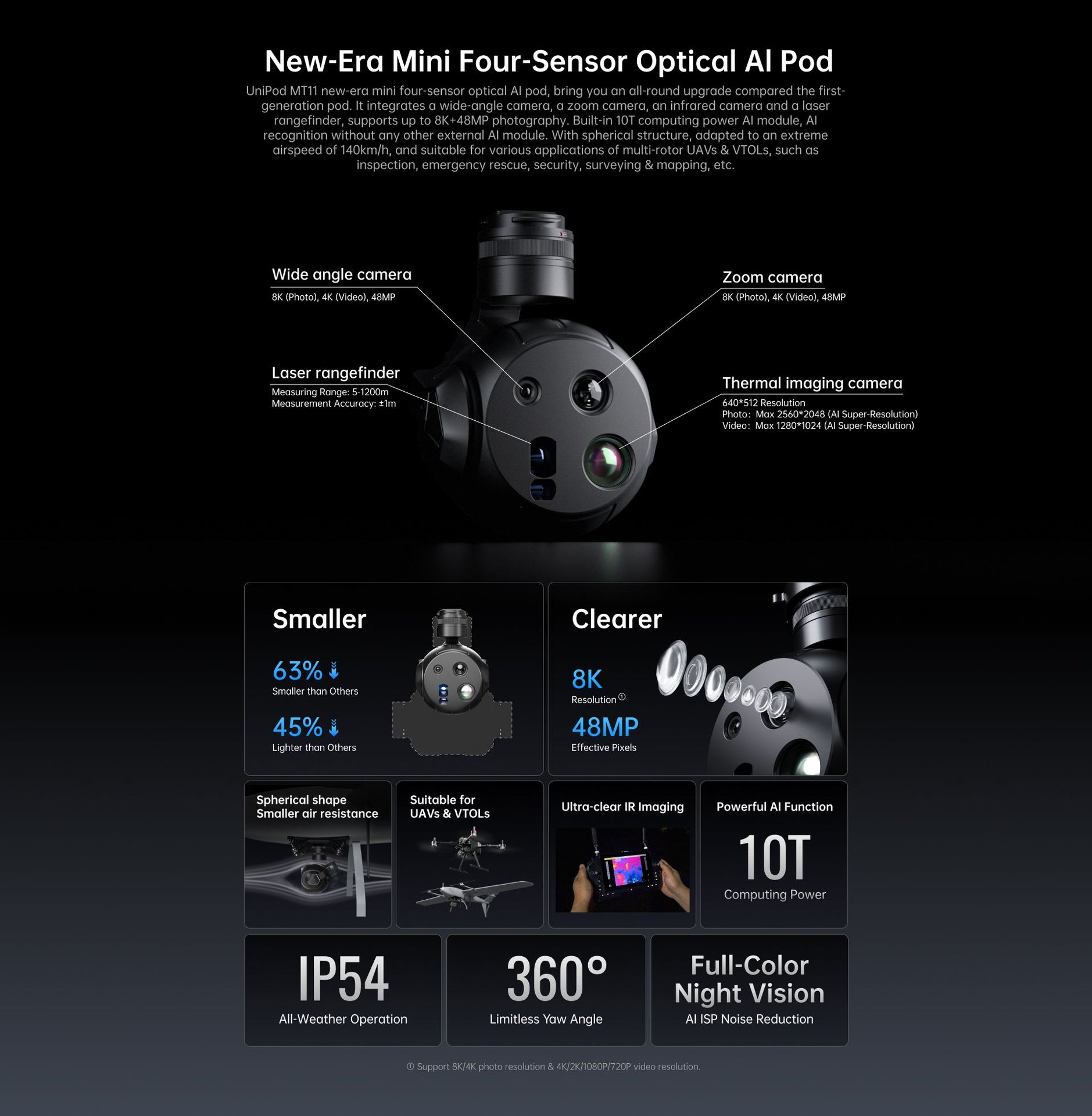

UniPod MT11 new-era mini four-sensor optical Al pod, bring you an all-round upgrade compared the first- generation pod. It integrates a wide-angle camera, a zoom camera, an infrared camera and a laser rangefinder, supports up to 8K+48MP photography. Built-in 10T computing power Al module, AlI recognition without any other external Al module. With spherical structure, adapted to an extreme airspeed of 140km/h, and suitable for various applications of multi-rotor UAVs & VTOLs, such as inspection, emergency rescue, security, surveying & mapping, etc.
Main Features:
✅ Smaller Size: The unit weighs only approximately 405g, a 45% reduction and 63% reduction compared to the previous generation pod!
✅ Clearer Field of View: Up to 8K + 48MP effective pixels, 11x optical zoom, 165x hybrid zoom, and wide-angle + zoom + thermal imaging + laser ranging all-in-one!
✅ Powerful AI Capabilities: The built-in 10T AI computing module allows for object recognition and tracking without the need for external AI modules!
✅ Enhanced Infrared Performance: 8x zoom, AI super-resolution, and up to 2560*2048 infrared photo resolution! Dual-beam linkage and ambient temperature correction provide high-precision temperature measurement!
✅ All-weather operation: full-color night vision, AI ISP noise reduction, IP54 industrial-grade triple protection, to achieve all-weather and all-scenario adaptability!
Specs
General Specifications
| General Specifications | 141.5 × 141.5 × 169 mm （Without the Quick Release Anti-Vibration Board） 90 × 102.5 × 128 mm （With the Quick Release Anti-Vibration Board） |
| Weight | 533.5 g ± 5 g （With the Quick Release Anti-Vibration Board and Interface Docking Station） 405 g ± 5 g （Without the Quick Release Anti-Vibration Board） |
| System Power Consumption | Avg. 11.4 W (Static) |
| IP Level | IP54 Under controlled laboratory conditions, the product meets the IP54 protection rating as defined by IEC 60529. Note: This rating is not permanent, and protection performance may degrade over time due to product wear and usage. |
| Working Environment | -20 ℃ to 50 ℃ |
| Storage Temperature | -20 ℃ to 60 ℃ |
| Extreme Airspeed | 140 km/h (Lab Data) |
| Cruising Airspeed | 120 km/h (Lab Data) |
| Control Interface Protocols | S.Bus, UART, Ethernet (TCP/UDP) |
| Video Output | Ethernet Port |
| Operating Voltage | 10–26 V (3–6S) *Requires independent power supply |
| Camera ISP Parameter Adjustment | Brightness: 0–100; Saturation: 0–100; Contrast: 0–100; Exposure Compensation (EV): ±10; Shutter Speed (SS); White Balance (WB); |
| Optical Zoom | 11 x |
| Hybrid Zoom | 165 x |
| AI Computing Power | 10 T |
Gimbal Specifications
| 3-Axis Stabilization System | Yaw, Pitch, Roll |
| Angular Jitter | 0.01° |
| Installation Method | Quick-Release Anti-Vibration Board |
| Control Angle | Pitch: –90° to +20° Yaw: 360° × N (Unlimited) |
| Structural Limit | Roll: –60° to +60° Pitch: –120° to +60° |
| Opertation Mode | Follow Mode, FPV Mode, Lock Mode |
Wide angle Camera Specifications
| Image Sensor | 1/2" CMOS; Effective Resolution: 48 MP |
| Lens | Focal Length: 4.5 mm （Effective focal distance: 24 mm） Aperture: f/2.8 |
| FOV | DFOV：84° |
| Video Resolution | 3840×2160 @ 30 fps 2560×1440 @ 30 fps 1920×1080 @ 30 fps 1280×720 @ 30 fps |
| Video Format | MP4 |
| Video Encoding | H.265 |
| Photo Resolution | 3840×2160 8000×6000 |
| Photo Format | JPG |
| Metering Modes | Avg/CW/Spot |
| Target Detection Range | Pedestrian: 2806 m Vehicle: 8606 m Vessel: 26192 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
| Target Recognition Range | Pedestrian: 702 m Vehicle: 2151 m Vessel: 6548 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
| Target Identification Range | Pedestrian: 351 m Vehicle: 1076 m Vessel: 3274 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
Zoom Camera Specifications
| Image Sensor | 1/2" CMOS; Effective Resolution: 48 MP |
| Lens | Focal distance：15-50 mm（Effective focal distance：81-270 mm） ±5% Aperture: f/3.8-f/4.4 |
| FOV | W: 28.98(D) 23.48(H) 17.81(V) T: 9.06（D） 7.29(H) 5.49(V) |
| Focus Modes | MF, AFS |
| Video Resolution | 3840×2160 @ 30fps 2560×1440 @ 30fps 1920×1080 @ 30fps 1280×720 @ 30fps |
| Video Format | MP4 |
| Video Encoding | H.265 |
| Photo Resolution | 3840×2160 8000×6000 |
| Photo Format | JPG |
| Metering Modes | Avg/CW/Spot |
| Target Detection Range | W: Pedestrian: 9375 m Vehicle: 28750 m Vessel: 87500 m T: Pedestrian: 31250 m Vehicle: 95833 m Vessel: 291667 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
| Target Recognition Range | W: Pedestrian: 2344 m Vehicle: 7188 m Vessel: 21875 m T: Pedestrian: 7813 m Vehicle: 23958 m Vessel: 72917 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
| Target Identification Range | W: Pedestrian: 1172 m Vehicle: 3594 m Vessel: 10938 m T: Pedestrian: 3906 m Vehicle: 11979 m Vessel: 36458 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
Laser Rangefinder Specifications
| Wavelength | 905 nm |
| Measuring Range(Building) | 5–1200 m |
| Measurement Accuracy | ± 1 m |
| Pulse Repetition Frequency (PRF) | 3 Hz (5–45 m) 0.75–3 Hz (45–1200 m) |
| Eye Safety Classification | Class 3R |
Infrared Camera Specifications
| Thermal Imaging Sensor | VOx Uncooled Pixel Pitch: 12 um |
| Lens | Focal Length: 18 mm Aperture: f/1.1 |
| FOV | DFOV：31° |
| Digital Zoom | 8 × |
| Video Resolution | 640 × 512，1280 × 1024 @ AI |
| Video Format | MP4 |
| Video Encoding | H.265 |
| Photo Resolution | 640 × 512 1280 × 1024 @ AI 2560 × 2048 @ AI |
| Photo Format | JPG |
| NETD | 8 - 14 μm |
| Temperature Measurement Accuracy | High gain：-20 ℃ to +150 ℃ （±2℃ or ± 2%，Take max value） Low gain：0 ℃ to +550 ℃ （± 3 ℃ or ± 3 %，Take max value） |
| High-Temperature Alarm | Supported |
| Temperature Measurement Mode | Full-Image / point / box thermometric |
| Pseudo-Color Modes | White Hot, Lava, Iron Red, Low Light, Aurora, Red Hot, Medical, Black Hot, Golden Red (9 modes total) |
| Target Detection Range | Pedestrian: 750 m Vehicle: 2300 m Vessel: 7000 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
| Target Recognition Range | Pedestrian: 188 m Vehicle: 575 m Vessel: 1750 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
| Target Identification Range | Pedestrian: 94 m Vehicle: 288 m Vessel: 875 m *According to the Johnson criteria, the critical dimensions are 0.75 m for pedestrians, 2.3 m for vehicles, and 7 m for vessel. The pixel thresholds for detection, recognition, and identification are 1.5, 6, and 12 cycles per meter (CPM), respectively. |
Additional Specifications
| Network Streaming Protocol | RTSP (Dual Stream Supported) |
| Stream Encoding Format | H.265 |
| Stream Display | Supports Frame Stitching & View Selection |
| Storage Card Format | FAT32/exFAT *Please use U3/Class 10/V30 or higher-grade memory card. |
| Video Recording Bitrate | 4K: 40Mbps 2K: 20Mbps 1080P: 10Mbps 720P: 5Mbps (H.265) |
Quick Release Anti-Vibration Board Specifications
| Dimensions | 141.5 × 41.5 × 63 mm |
| Weight | 123g ±5g（Without expansion dock） |
